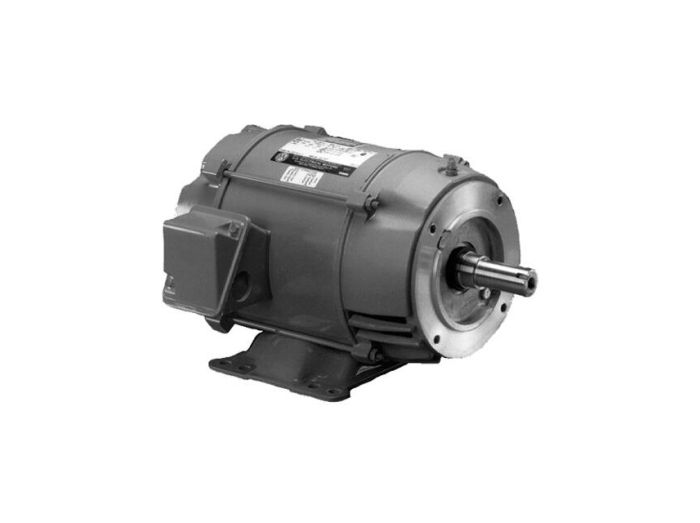

D32P1AHC
MFG #:
D32P1AHC
Specifications
| Country of Origin | Mexico |
|---|---|
| Manufacturer Part Number | D32P1AHC |
| Manufacturer | US Motors |
| Family Series | US Motors Motors |
| Type | General Purpose |
| Horsepower | 1-1/2 hp |
| Kilowatts | 1.1 kW |
| Speed | 3,450 RPM |
| RPM | 3,450 RPM |
| Number of Poles | 2 |
| Phase | 3 |
| Frequency | 60 Hz |
| NEMA Frame | 56HC |
| AC Voltage | 208-230 VAC, 460 VAC |
| Nominal Voltage | 208 VAC, 240 VAC, 480 VAC |
| Enclosure | Open Drip Proof |
| Mounting | C-Face Footed |
| Current Rating | 4.7-4.4 A, 2.2 A |
| Composition | Rolled Steel |
| Overload Protection | None |
| Net Weight | 32 lbs |
| Gross Weight | 32 lbs |
Description
Motors, Series
Item #
D32P1AHC
Motor, 1.5 HP, 3600 RPM, 56HC
Series Information
Documents & Resources Links
Added to Cart
D32P1AHC US Motors Motors, Motor, 1.5 HP, 3600 RPM, 56HC
MFG #:
D32P1AHC
Motor, 1.5 HP, 3600 RPM, 56HC
