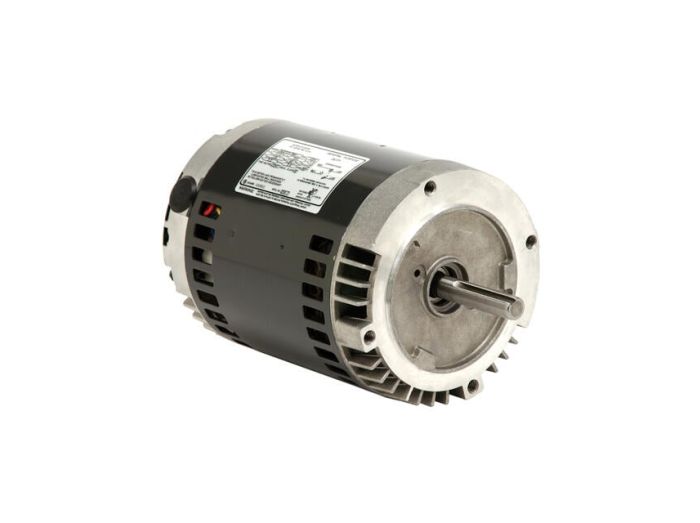

D34CPM1PCR
MFG #:
D34CPM1PCR
Specifications
| Country of Origin | Mexico |
|---|---|
| Manufacturer Part Number | D34CPM1PCR |
| Manufacturer | US Motors |
| Family Series | US Motors Motors |
| Type | Capacitor Start, General Purpose |
| Horsepower | 3/4 hp |
| Kilowatts | 0.6 kW |
| Speed | 3,450 RPM |
| RPM | 3,450 RPM |
| Number of Poles | 2 |
| Phase | 1 |
| Frequency | 60 Hz |
| NEMA Frame | 56 |
| AC Voltage | 115 VAC, 230 VAC |
| Nominal Voltage | 120 VAC, 240 VAC |
| Mounting | C-Face |
| Current Rating | 7 A |
| Overload Protection | Manual |
| H x W x D | 11.00 " x 8.25 " x 15.32 " |
| Net Weight | 24 lbs |
| Gross Weight | 24 lbs |
Description
Motors, Series
Item #
D34CPM1PCR
Motor, 3/4 HP, 3600 RPM, 56
Series Information
Documents & Resources Links
Added to Cart
D34CPM1PCR US Motors Motors, Motor, 3/4 HP, 3600 RPM, 56
MFG #:
D34CPM1PCR
Motor, 3/4 HP, 3600 RPM, 56
