DBR-0800-01500-ENC
Control Techniques Braking Resistors, DBR Series

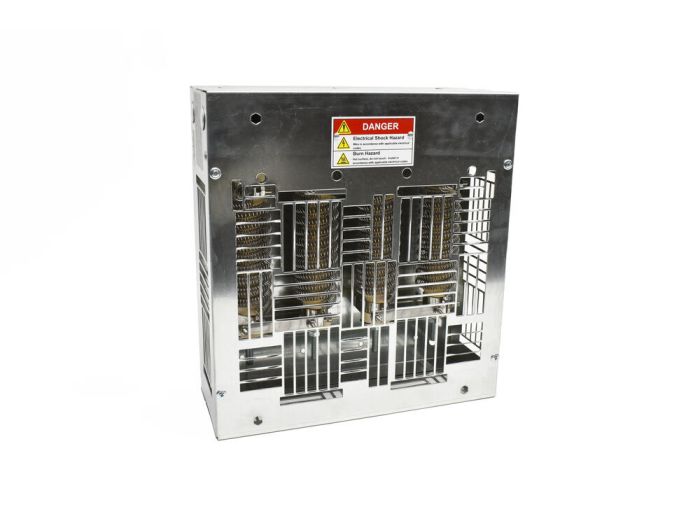

Product images are for illustration purposes only. Please review specifications and documentation for exact product details.
DBR-0800-01500-ENC Control Techniques Braking Resistors, DBR Series
DB RESISTOR, 80 OHMS, 1500 WATTS,
MFG Item Number
DBR-0800-01500-ENC
Series
More specs
This item cannot be canceled or returned
Orders placed by 5:00pm Eastern time will ship today. If you would like to pick up your order, select Will Call during checkout if it is available.
Description
Braking Resistors, DBR Series
Item #
DBR-0800-01500-ENC
DB RESISTOR, 80 OHMS, 1500 WATTS,
DBR Series Information
- Galvanized NEMA 1 Enclosure
- 230, 460, or 575 VAC
- With Built‑In Junction Box, Terminal Strip, Thermal Contact, and Pre‑Wired Resistors
Specifications
| Manufacturer Part Number | DBR-0800-01500-ENC |
|---|---|
| Manufacturer | Control Techniques |
| Product Series | DBR |
| Family Series | Control Techniques Braking Resistors, DBR Series |
| Description | DB RESISTOR, 80 OHMS, 1500 WATTS, ENCLOSED WITH NORMALLY CLOSED THERMOSTAT |
| Ohms | 80 Ohm |
| Wattage | 1,500 W |
| Nominal Height | 5 " |
| Nominal Width | 14 " |
| Nominal Depth | 13 " |
| H x W x D | 5.00 " x 13.00 " x 14.00 " |
| Net Weight | 14.89 lbs |
| Gross Weight | 14.89 lbs |
