DC1-34024NB-A20CE1
Eaton Drives, DC1 Series

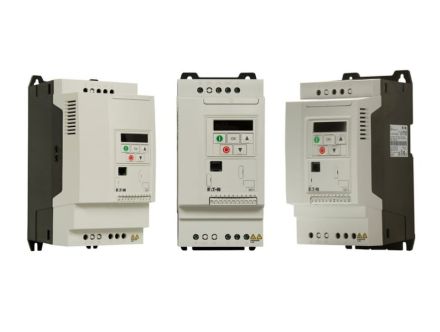

Product images are for illustration purposes only. Please review specifications and documentation for exact product details.
DC1-34024NB-A20CE1 Eaton Drives, DC1 Series
Drive, AC, 15HP, 480V, 24.0A, CT, OP
MFG Item Number
DC1-34024NB-A20CE1
Series
More specs
This item cannot be canceled or returned
Orders placed by 5:00pm Eastern time will ship today. If you would like to pick up your order, select Will Call during checkout if it is available.
Description
Drives, DC1 Series
Item #
DC1-34024NB-A20CE1
Drive, AC, 15HP, 480V, 24.0A, CT, OP
DC1 Series Information
Specifications
| Country of Origin | United Kingdom |
|---|---|
| Manufacturer Part Number | DC1-34024NB-A20CE1 |
| Manufacturer | Eaton |
| Product Series | DC1 |
| Family Series | Eaton Drives, DC1 Series |
| Description | DC1 IP20 480V IN/460V OUT 15HP, 24A ENH FW |
| Phase | 3 |
| HP (Constant Torque Rating) | 15 hp |
| Amps (Constant Torque Rating) | 24 A |
| Brake | Dynamic Braking, Flux Braking |
| Closed Loop | No |
| AC Line Regenerative | No |
| Operator Controls | Built In |
| Motor Control-Max Level | Open Loop Vector (Sensorless Vector) |
| Mounting | Panel |
| Nominal Input Voltage | 380 VAC, 415 VAC, 480 VAC |
| AC Voltage | 380-480 VAC |
| Frequency | 500 Hz |
| Frame Size | FS3 |
| Protection Rating | IP20 |
| Dynamic Braking | Included |
| Height | 10.75 " |
| Width | 5.08 " |
| Depth | 6.89 " |
| Comments | Enhanced Firmware, SmartWire Capability, Contactor Style Power Wiring, Input Top, Output Bottom |
| H x W x D | 9.75 " x 6.25 " x 13.00 " |
| Net Weight | 11 lbs |
| Gross Weight | 11 lbs |
