Specifications
| Country of Origin | United Kingdom |
|---|---|
| Manufacturer Part Number | DC1-342D2NN-A66CE1 |
| Manufacturer | Eaton |
| Product Series | DC1 |
| Family Series | Eaton Drives, DC1 Series |
| Phase | 3 |
| HP (Constant Torque Rating) | 1 hp |
| Amps (Constant Torque Rating) | 2.2 A |
| Brake | Flux Braking |
| Closed Loop | No |
| AC Line Regenerative | No |
| Operator Controls | Built In |
| NEMA Rating | NEMA 4X |
| Motor Control-Max Level | Open Loop Vector (Sensorless Vector) |
| Mounting | Panel |
| Nominal Input Voltage | 380 VAC, 415 VAC, 480 VAC |
| AC Voltage | 380-480 VAC |
| Frequency | 500 Hz |
| Frame Size | FS1 |
| Protection Rating | IP66 |
| Dynamic Braking | Not Available |
| Height | 9.13 " |
| Width | 6.34 " |
| Depth | 7.24 " |
| Comments | Enhanced Firmware, SmartWire Capability |
| H x W x D | 9.20 " x 8.60 " x 14.30 " |
| Net Weight | 6.4 lbs |
| Gross Weight | 6.4 lbs |
Description
Drives, DC1 Series
Item #
DC1-342D2NN-A66CE1
Drive, AC, 1HP, 480V, 2.2A, CT, N4X
DC1 Series Information
Documents & Resources Links
Videos
Added to Cart

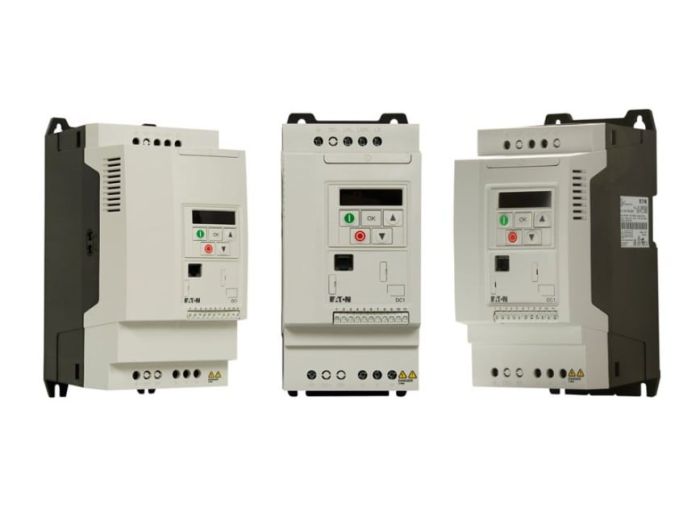

DC1-342D2NN-A66CE1 Eaton Drives, DC1 Series, Drive, AC, 1HP, 480V, 2.2A, CT, N4X
Series DC1
MFG #:
DC1-342D2NN-A66CE1
DC1 IP66 480V IN/460V OUT 1HP, 2.2A ENH FW
