Series DG1
DG1-32048FB-C21C
MFG #: EATON-9701-3004-00P

Create a free account or sign in to unlock our best online pricing!

Your account pricing is now applied.

Toggle Nav
Search
My Cart
866-354-0063 [email protected]
Request Quotes
Eaton
Series
DG1

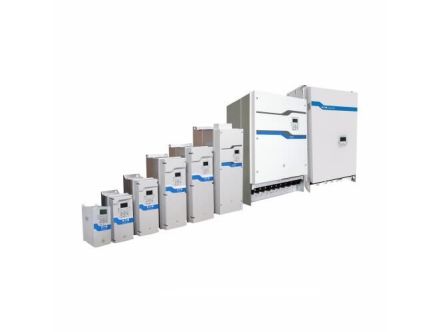

DG1-32048FB-C21C Eaton Drives, DG1 Series
MFG #:
EATON-9701-3004-00P
Eaton PowerXL DG1 variable frequency drive, 208-240V input 11 kW 15 Hp CT 3PH 50/60 Hz 48A output IP21/type 1 enclosure FR3 LCD display Internal EMC filter and DC choke EtherNet
View Full Specs

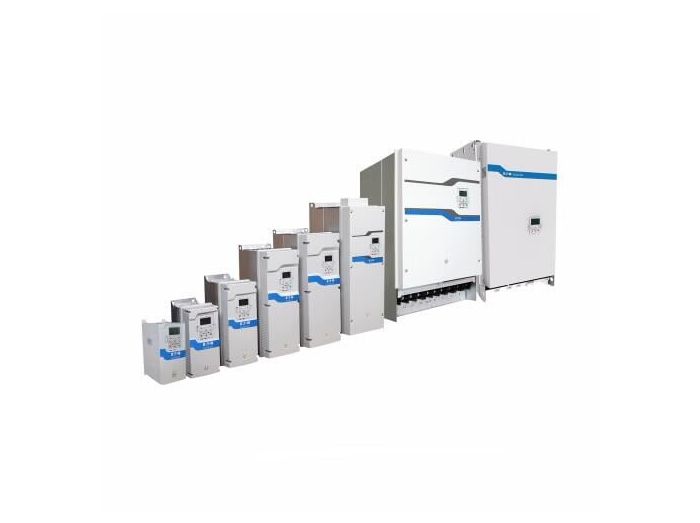

main product photo

Product images are for illustration purposes only. Please review specifications and documentation for exact product details.

Eaton
Series
DG1

DG1-32048FB-C21C Eaton Drives, DG1 Series

MFG #:
EATON-9701-3004-00P
Item Number
DG1-32048FB-C21C
Eaton PowerXL DG1 variable frequency drive, 208-240V input 11 kW 15 Hp CT 3PH 50/60 Hz 48A output IP21/type 1 enclosure FR3 LCD display Internal EMC filter and DC choke EtherNet
View Full Specs

Request Lead Time
This item cannot be canceled or returned

Specifications

Specifications
Manufacturer Part Number EATON-9701-3004-00P
Manufacturer Eaton
Product Series DG1
Family Series Eaton Drives, DG1 Series
Phase 3
HP (Constant Torque Rating) 15 hp
HP (Variable Torque Rating) 20 hp
Amps (Constant Torque Rating) 48 A
Amps (Variable Torque Rating) 61 A
Brake DC Injection, Dynamic Braking
Closed Loop No
AC Line Regenerative No
Operator Controls Keypad Included
NEMA Rating NEMA 1
Motor Control-Max Level Open Loop Torque
Mounting Panel
Nominal Input Voltage 208 VAC, 240 VAC
AC Voltage 208-240 VAC
Frequency 400 Hz
Frame Size FR3
Protection Rating IP21
Dynamic Braking Included
Height 22 "
Width 8.1 "
Depth 10.4 "
Comments Active Energy Control, Real-Time Clock, EMC Filter, Conformal Coated Boards, On-Board Ethernet/IP
H x W x D 16.50 " x 12.00 " x 27.00 "
Net Weight 49.8188 lbs
Gross Weight 53 lbs
