DG1-34012FB-C54C Eaton Drives, DG1 Series
MFG #:
EATON-9702-2102-00P
Eaton PowerXL DG1 variable frequency drive, 380-500V input 5.5 kW 7.5 Hp CT 3ph 50/60 Hz 12A o/p IP54/type 12 FR2 LCD Internal EMC filter and DC choke EtherNet, RS-485, BACnet MS/TP, Modbus TCP and RTU ports 2 exp slots Brake chopper
View Full Specs

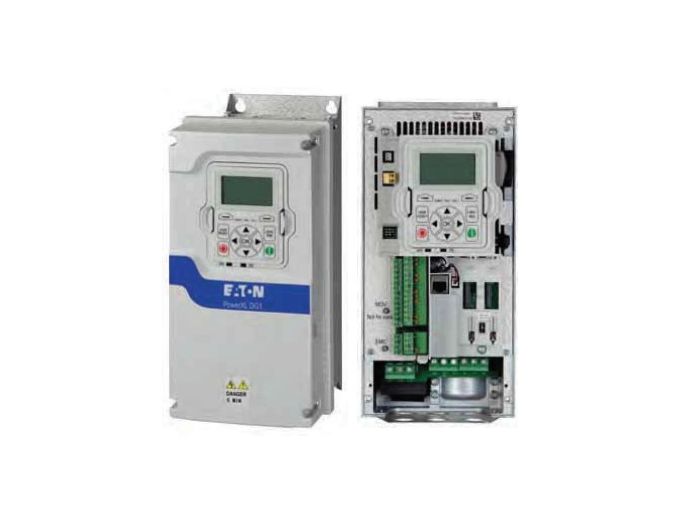

main product photo

Product images are for illustration purposes only. Please review specifications and documentation for exact product details.

Eaton
Series
DG1

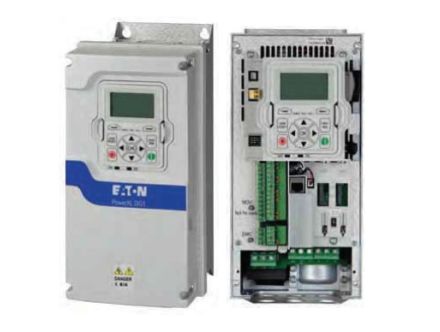

DG1-34012FB-C54C Eaton Drives, DG1 Series

MFG #:
EATON-9702-2102-00P
Item Number
DG1-34012FB-C54C
Eaton PowerXL DG1 variable frequency drive, 380-500V input 5.5 kW 7.5 Hp CT 3ph 50/60 Hz 12A o/p IP54/type 12 FR2 LCD Internal EMC filter and DC choke EtherNet, RS-485, BACnet MS/TP, Modbus TCP and RTU ports 2 exp slots Brake chopper
View Full Specs

Request Lead Time
This item cannot be canceled or returned

Specifications

Specifications
Manufacturer Part Number EATON-9702-2102-00P
Manufacturer Eaton
Product Series DG1
Family Series Eaton Drives, DG1 Series
Phase 3
HP (Constant Torque Rating) 7.5 hp
HP (Variable Torque Rating) 10 hp
Amps (Constant Torque Rating) 12 A
Amps (Variable Torque Rating) 16 A
Brake DC Injection, Dynamic Braking
Closed Loop No
AC Line Regenerative No
Operator Controls Keypad Included
NEMA Rating NEMA 12
Motor Control-Max Level Open Loop Torque
Mounting Panel
Nominal Input Voltage 380 VAC, 415 VAC, 480 VAC
AC Voltage 380-500 VAC
Frequency 400 Hz
Frame Size FR2
Protection Rating IP54
Dynamic Braking Included
Height 16.5 "
Width 6.6 "
Depth 9.6 "
Comments Active Energy Control, Real-Time Clock, EMC Filter, Conformal Coated Boards, On-Board Ethernet/IP
H x W x D 9.60 " x 6.60 " x 16.50 "
Net Weight 23.3688 lbs
Gross Weight 29 lbs
