DG1-34072FN-C54C Eaton Drives, DG1 Series
DG1,480V FR4,N12,50HP,72A CT,60HP,87A VT
MFG Item Number
EATON-9702-4108-00P
Eaton

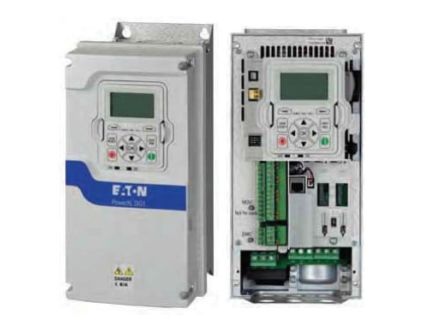

main product photo

Product images are for illustration purposes only. Please review specifications and documentation for exact product details.

DG1-34072FN-C54C Eaton Drives, DG1 Series

DG1,480V FR4,N12,50HP,72A CT,60HP,87A VT
MFG Item Number
EATON-9702-4108-00P
Eaton
Item Number
DG1-34072FN-C54C
Series
DG1
More specs
This item cannot be canceled or returned

Orders placed by 5:00pm Eastern time will ship today. If you would like to pick up your order, select Will Call during checkout if it is available.
Request Lead Time

Description

Drives, DG1 Series
Item #
DG1-34072FN-C54C
DG1,480V FR4,N12,50HP,72A CT,60HP,87A VT

DG1 Series Information

  • Dual VT and CT Ratings
  • Dual Overload Ratings
  • EMI/RFI Filters
  • LCD Display
The DGI general purpose drives are a series of adjustable frequency drives engineered for the demading commercial and industrial applications. The unit makes use of semiconductor technology and a modular construction that can be flexibly adapted.
  • Real Time Clock
  • Local/Remote

Links

Videos

Specifications

Specifications
Manufacturer Part Number EATON-9702-4108-00P
Manufacturer Eaton
Product Series DG1
Family Series Eaton Drives, DG1 Series
Description Eaton PowerXL DG1 variable frequency drive, 380-500V input 37 kW 50 Hp CT 3PH 50/60 Hz 72A output IP54/type 12 FR5 LCD display Internal EMC filter and DC choke EtherNet, RS-485, BACnet MS/TP, Modbus TCP and RTU ports 2 expansion slots
Phase 3
HP (Constant Torque Rating) 50 hp
HP (Variable Torque Rating) 60 hp
Amps (Constant Torque Rating) 72 A
Amps (Variable Torque Rating) 87 A
Brake DC Injection, Dynamic Braking
Closed Loop No
AC Line Regenerative No
Operator Controls Keypad Included
NEMA Rating NEMA 12
Motor Control-Max Level Open Loop Torque
Mounting Panel
Nominal Input Voltage 380 VAC, 415 VAC, 480 VAC
AC Voltage 380-500 VAC
Frequency 400 Hz
Frame Size FR4
Protection Rating IP54
Dynamic Braking Optional (Internal)
Height 24.8 "
Width 9.4 "
Depth 11.6 "
Comments Active Energy Control, Real-Time Clock, EMC Filter, Conformal Coated Boards, On-Board Ethernet/IP
Net Weight 77.6027 lbs
Gross Weight 80 lbs
