DG1-344D3FB-C21C
Eaton Drives, DG1 Series

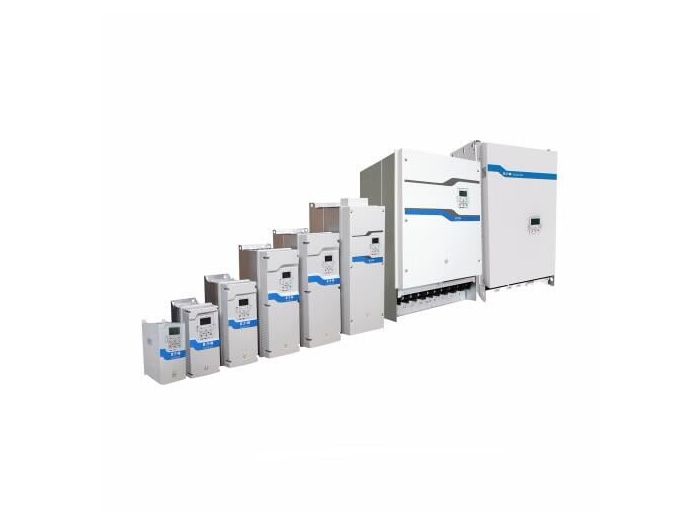

Product images are for illustration purposes only. Please review specifications and documentation for exact product details.
DG1-344D3FB-C21C Eaton Drives, DG1 Series
DG1,480V FR1 ,N1,2HP,4.3A/3HP,5.6A,BC
MFG Item Number
DG1-344D3FB-C21C
Series
More specs
This item cannot be canceled or returned
Orders placed by 5:00pm Eastern time will ship today. If you would like to pick up your order, select Will Call during checkout if it is available.
Accessories
Description
Drives, DG1 Series
Item #
DG1-344D3FB-C21C
DG1,480V FR1 ,N1,2HP,4.3A/3HP,5.6A,BC
DG1 Series Information
- Dual VT and CT Ratings
- Dual Overload Ratings
- EMI/RFI Filters
- LCD Display
- Real Time Clock
- Local/Remote
Specifications
| Manufacturer Part Number | DG1-344D3FB-C21C |
|---|---|
| Manufacturer | Eaton |
| Product Series | DG1 |
| Family Series | Eaton Drives, DG1 Series |
| Description | Eaton PowerXL DG1 variable frequency drive, 380-500V input 1.5 kW 2 Hp CT 3PH 50/60 Hz 4.3A output IP21/type 1 enclosure FR1 LCD display Internal EMC filter and DC choke EtherNet |
| Phase | 3 |
| HP (Constant Torque Rating) | 2 hp |
| HP (Variable Torque Rating) | 3 hp |
| Amps (Constant Torque Rating) | 4.3 A |
| Amps (Variable Torque Rating) | 5.6 A |
| Brake | DC Injection, Dynamic Braking |
| Closed Loop | No |
| AC Line Regenerative | No |
| Operator Controls | Keypad Included |
| NEMA Rating | NEMA 1 |
| Motor Control-Max Level | Open Loop Torque |
| Mounting | Panel |
| Nominal Input Voltage | 380 VAC, 415 VAC, 480 VAC |
| AC Voltage | 380-500 VAC |
| Frequency | 400 Hz |
| Frame Size | FR1 |
| Protection Rating | IP21 |
| Dynamic Braking | Included |
| Height | 12.9 " |
| Width | 6 " |
| Depth | 7.9 " |
| Comments | Active Energy Control, Real-Time Clock, EMC Filter, Conformal Coated Boards, On-Board Ethernet/IP |
| H x W x D | 13.50 " x 9.00 " x 17.00 " |
| Net Weight | 14.75 lbs |
| Gross Weight | 16.4375 lbs |
