Series

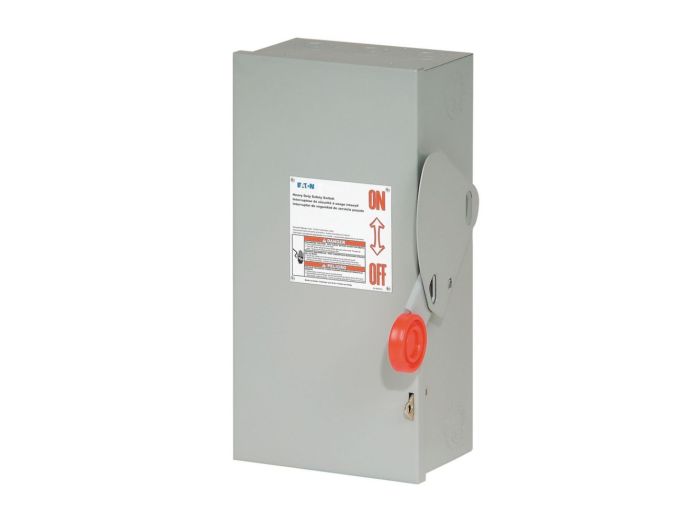

DH361NRK Eaton Safety Switches, DH Series
MFG #:
DH361NRK
Eaton Enhanced visible blade single-throw safety switch, 30 A, NEMA 3R, Painted galvanized steel, Class H, Fusible with neutral, Three-pole, Four-wire, 600 V, Max Hp: 7.5, 10/ 15, 20 hp 1/3PH 480, 600 V, 14-2 Cu/Al
Specifications
| Manufacturer Part Number | DH361NRK |
|---|---|
| Manufacturer | Eaton |
| Product Series | DH |
| Family Series | Eaton Safety Switches, DH Series |
| Switch Type | Heavy Duty |
| Number of Poles | 3 |
| Voltage | 600 V |
| Current Rating | 30 A |
| Fusible | Yes |
| Fuse Type | H, R |
| Neutral | Yes |
| Composition | Metallic |
| NEMA Rating | NEMA 3R |
| Approvals | cUL, UL |
| H x W x D | 8.50 " x 9.50 " x 17.00 " |
| Net Weight | 12 lbs |
| Gross Weight | 20 lbs |
Description
Safety Switches, DH Series
Item #
DH361NRK
30A/3P HD FSBL Sfty Sw 600V W/NEUT N3R
DH Series Information
Cutler Hammer Safety Switches provide a means to manually connect or disconnect the load from the source. Fusible safety switches provide a means to manually open and close a circuit and overcurrent protection by means of installed fuses. Also commonly referred to as a disconnect switch or disconnect, Cutler Hammer Safety switches are available from 30 ‑ 1200 amperes in a variety of types:
General Duty ‑ For residential and commercial applications. Suitable for light‑duty motor circuits and service entrance from 30 to 600 amperes.
Heavy‑Duty ‑ For heavy commercial and industrial applications where reliable performance and service continuity are critical.
Double Throw ‑ Used to transfer service from a normal power source to an alternate source or to switch from one load circuit to another.
General Duty ‑ For residential and commercial applications. Suitable for light‑duty motor circuits and service entrance from 30 to 600 amperes.
Heavy‑Duty ‑ For heavy commercial and industrial applications where reliable performance and service continuity are critical.
Double Throw ‑ Used to transfer service from a normal power source to an alternate source or to switch from one load circuit to another.
