Product images are for illustration purposes only. Please review specifications and documentation for exact product details.
Series

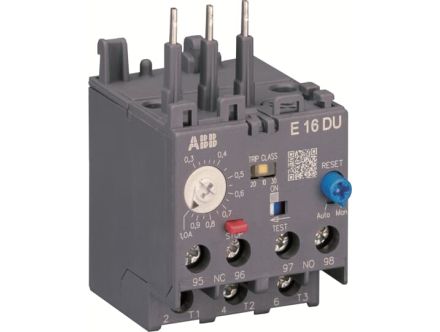

E16DU18.9 ABB Overload Relays, E16 Series
MFG #:
E16DU18.9
The E16DU-18.9 is an self-supplied electronic overload relay, which means no extra external supply is needed. It offers reliable and fast protection for motors in the event of overload or phase failure. Easy to use like a thermal overload relay and
Specifications
| Manufacturer Part Number | E16DU18.9 |
|---|---|
| Manufacturer | ABB |
| Product Series | E16 |
| Family Series | ABB Overload Relays, E16 Series |
| Current Rating | 5.7-18.9 A |
| Poles | 3 |
| Output Contacts | 1NO, 1NC |
| Trip Class | Class 10, Class 20, Class 30 |
| Reset Type | Automatic, Manual |
| Connection Type | Direct Coupling |
| Ambient Temperature | -13-158 °F |
| Approvals | CE, CSA, UL |
| H x W x D | 1.81 " x 2.56 " x 3.01 " |
| Net Weight | 0.36 lbs |
| Gross Weight | 0.375 lbs |
Description
Overload Relays, E16 Series
Item #
E16DU18.9
EOL,CL 10,20,30,5.7-18.9A
E16 Series Information
- Electronic Overload Relay
- 3 Poles
- Connection Type: Direct Coupling
- Ambient Temp. Range: ‑13 to 158 Degrees F
- Trip Class: Class 10; Class 20; Class 30
Documents & Resources Links
Videos
Accessories
Compare compatible accessories for this product.
| Image | Part | Description | Series | Type | Price | Action |
|---|---|---|---|---|---|---|
|
|
DB16E | DB16E Single Mounting Kit for E16DU | ABB Contactors | Mounting Kit |
Price unavailable
|
