E22H9X96
Eaton Pilot Lights, E22 Series
Product images are for illustration purposes only. Please review specifications and documentation for exact product details.

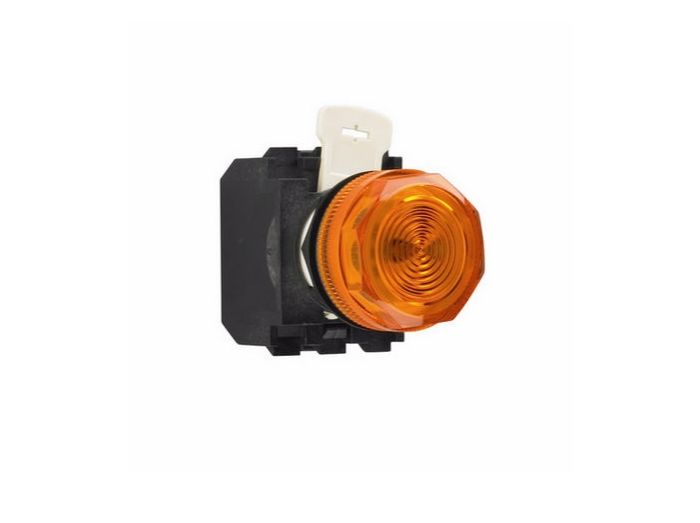

E22H9X96 Eaton Pilot Lights, E22 Series
E22 IND LIGHT 120V LED FV - AB LENS
MFG Item Number
E22H9X96
Series
More specs
This item cannot be canceled or returned
Orders placed by 5:00pm Eastern time will ship today. If you would like to pick up your order, select Will Call during checkout if it is available.
Description
Pilot Lights, E22 Series
Item #
E22H9X96
E22 IND LIGHT 120V LED FV - AB LENS
E22 Series Information
- ‑4~158F Operating Temperature
- UL Listed and NEMA Rated
- Various Light Types
- Various Termination Choices
- IP65 Protection
- NEMA Type 1, 2, 3, 3R, 4, 4X, 12, and 13
- "Reliability Nibs" on the contact block contacts
Specifications
| Country of Origin | Dominican Republic |
|---|---|
| Manufacturer Part Number | E22H9X96 |
| Manufacturer | Eaton |
| Product Series | E22 |
| Family Series | Eaton Pilot Lights, E22 Series |
| Description | Eaton E22 pushbutton, Non-metallic Assembled Indicating Light, Heavy-Duty, Standard actuator, Black, LED, Full voltage, NEMA 3, 3R, 4, 4X, 12, 13, 120 Vac, Bayonet base, Amber, Plastic, 120 V |
| Push-to-Test | No |
| Mounting | 22 mm |
| Lamp Type | LED |
| Lens Color | Amber |
| Bezel | Black Plastic |
| Nominal Lamp Voltage | 120 VAC |
| Protection Rating | IP65 |
| Terminal Type | Screw |
| NEMA Rating | NEMA 1, NEMA 12, NEMA 13, NEMA 2, NEMA 3, NEMA 3R, NEMA 4, NEMA 4X |
| Approvals | UL |
| H x W x D | 1.16 " x 1.16 " x 2.46 " |
| Gross Weight | 0.055 lbs |
| Net Weight | 0.055 lbs |
