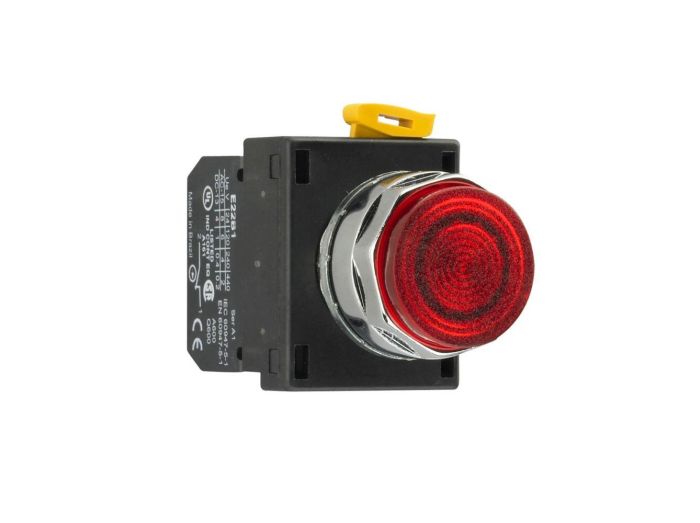

Product images are for illustration purposes only. Please review specifications and documentation for exact product details.
Series
E22TB2 Eaton Switches, E22 Series
MFG #:
E22TB2
Eaton E22 Pushbutton, 22.5 mm, Non-metallic Heavy-Duty, 25 mm, NEMA 3, 3R, 4, 4X, 12, 13, Illuminated, Momentary, Red actuator, Extended, Plastic, No light unit, Black bezel
Specifications
| Manufacturer Part Number | E22TB2 |
|---|---|
| Manufacturer | Eaton |
| Product Series | E22 |
| Family Series | Eaton Switches, E22 Series |
| Illuminated | Yes |
| Operation | Momentary |
| Mounting | 22 mm |
| Operator Size (mm) | 25 mm |
| Lens/Button Shape | Round Extended |
| Operator Color | Red |
| H x W x D | 1.65 " x 1.20 " x 1.70 " |
| Net Weight | 0.045 lbs |
| Gross Weight | 0.02 lbs |
Description
Switches, E22 Series
Item #
E22TB2
IL PB EXTD BKBZ R
E22 Series Information
- ‑4~158F Operating Temperature
- UL Listed and NEMA Rated
- Various Light Types
- Various Termination Choices
- IP65 Protection
- NEMA Type 1, 2, 3, 3R, 4, 4X, 12, and 13
- "Reliability Nibs" on the contact block contacts
Documents & Resources Links
Alternatives
Compare available alternatives using the specifications that matter for this product.
| Image | Part | Description | Mounting | Series | Illuminated | Price | Action |
|---|---|---|---|---|---|---|---|
|
MP3-11R | Modular Pushbutton - Momentary - Extended - Red - Illuminated - Black plastic - No contact block | 22 mm | MODULAR | Yes |
Price unavailable
|
|
|
M22S-DLH-R | Eaton M22 modular pushbutton, 22.5 mm, Extended, Momentary, Illuminated, Bezel: Black, Button: Red, IP67, IP69K, NEMA 4x, 13, 5,000,000 Million mechanical operations | 22 mm | M22 | Yes |
Price unavailable
|
