E93/32
ABB Fuseblocks & Holders, E 90 Series
Product images are for illustration purposes only. Please review specifications and documentation for exact product details.

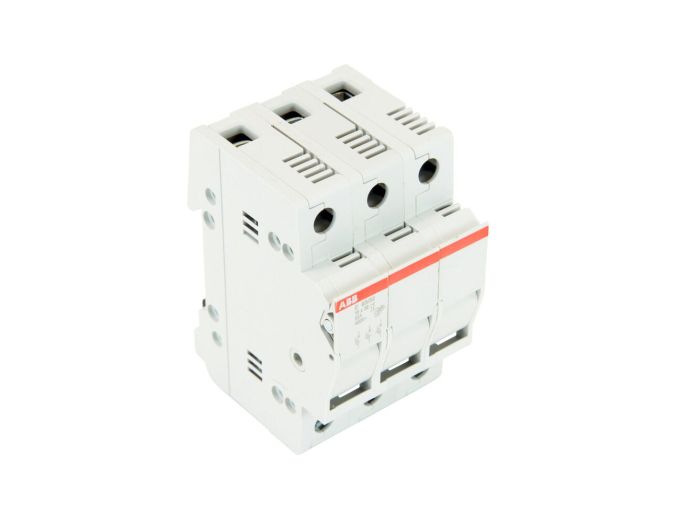

E93/32 ABB Fuseblocks & Holders, E 90 Series
E90 FUSE HOLDER 3P 32A
MFG Item Number
E93/32
Series
More specs
This item cannot be canceled or returned
Orders placed by 5:00pm Eastern time will ship today. If you would like to pick up your order, select Will Call during checkout if it is available.
Description
Fuseblocks & Holders, E 90 Series
Item #
E93/32
E90 FUSE HOLDER 3P 32A
E 90 Series Information
E 90 J range has been designed to comply with North American market regulations. The E 90 J fuse carriers are the ideal solution for industrial installation, motors and transformers protection, heating systems and control circuits.
In accordance with the reference standard UL 4248‑8, they come in voltage and current ratings up to 600 V and 30/60 A, respectively. The breaking capacity reaches 200 kA. Fuseholders of the E 90 J series are available in multipole configuration, from 1 to 3 poles. Versions with blown fuse indicator light provide a visual signal of the fuse break condition allowing a faster and safer maintenance of the installation. They can be padlocked open and sealed closed to ensure operator safety during maintenance operations.
Features:
- UL listed according to 4248‑8
- Can be equipped only with Class J fuses
- Rated voltage 600 V AC
- Rated current up to 60 A
- Versions with 1, 2 and 3 poles
Specifications
| Manufacturer Part Number | E93/32 |
|---|---|
| Manufacturer | ABB |
| Product Series | E 90 |
| Family Series | ABB Fuseblocks & Holders, E 90 Series |
| Description | E 93/32 is a fuseholder for overcurrent and short circuit protection. No blown fuse indicator. |
| Current Rating | 32 A |
| Voltage | 400 V |
| Poles | 3 |
| Fuse Type | IEC Ferrule Type |
| Fuse Size | 10 x 38 mm |
| Connection Type | Screw Terminal |
| Mounting | DIN Rail |
| Composition | Thermoplastic |
| Trip Indicator | No |
| Reinforced | No |
| Enclosed | Yes |
| Touch Safe | Yes |
| Approvals | CSA, IEC, UL |
| H x W x D | 3.35 " x 2.52 " x 4.13 " |
| Net Weight | 0.4038 lbs |
| Gross Weight | 1.06 lbs |
