Specifications
| Manufacturer Part Number | ECP3774T-5 |
|---|---|
| Manufacturer | Baldor-ABB Motors |
| Product Series | CP |
| Family Series | Baldor-ABB Motors Motors, CP Series |
| Type | High Efficiency, Severe Duty |
| Horsepower | 10 hp |
| Speed | 1,800 RPM |
| RPM | 1,800 RPM |
| Number of Poles | 4 |
| Phase | 3 |
| NEMA Frame | 215T |
| AC Voltage | 575 VAC |
| Nominal Voltage | 575 VAC, 600 VAC |
| Enclosure | Totally Enclosed Fan Cooled |
| Mounting | Foot Mount, Rigid |
| Current Rating | 10 A |
| Service Factor | 1.15 |
| Inverter Duty | No |
| Composition | Cast Iron |
| Bearing Type | Re-Greasable |
| Length | 19.5 " |
| H x W x D | 19.00 " x 18.00 " x 28.50 " |
| Net Weight | 231 lbs |
| Gross Weight | 231 lbs |
Description

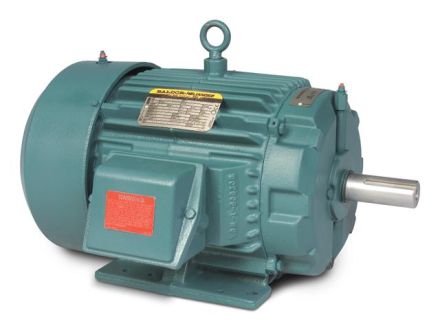

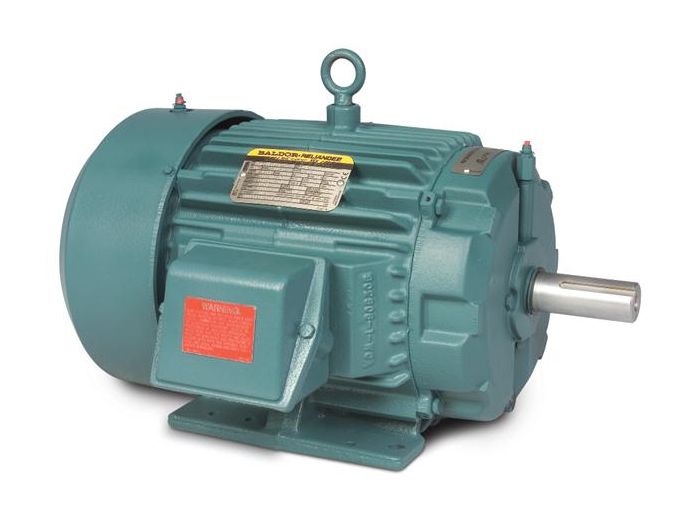

Motors, CP Series
Item #
ECP3774T-5
10HP, 1760RPM, 3PH, 60HZ, 215T, 0748M
CP Series Information
- Processing Industry Applications Requiring Protection against Corrosion Caused By Severe Environmental Operating Conditions
- Oversized Rotatable Cast Iron Conduit Box, Cast Iron Frames, Corrosion Resistant Hardware
- Corrosion Resistant Epoxy Finish
- Regreasable Ball or Roller Bearings
- 1.15 Service Factor
- Class F Insulation
Documents & Resources Links
Added to Cart
ECP3774T-5 Baldor-ABB Motors Motors, CP Series, 10HP, 1760RPM, 3PH, 60HZ, 215T, 0748M
Series CP
MFG #:
ECP3774T-5
10HP, 1760RPM, 3PH, 60HZ, 215T, 0750M, TEFC, F1
