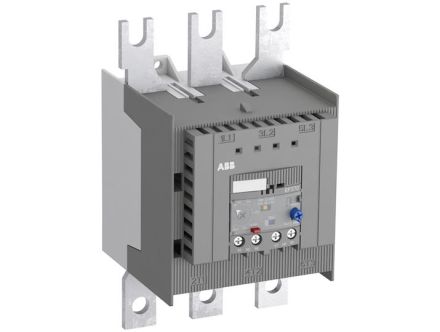

EF370-380 ABB Overload Relays, EF370 Series

• Overload protection‑trip class 10E,20E,30E selectable
• Phase loss sensitivity
• Adjustable current setting for overload protection
• Automatic or manual reset selectable
• Sealable operating elements
• Self‑supplied devices

The EF370 is an self‑supplied electronic overload relays,which means no extra external supply is needed.It offers reliable protection for motors in the event of overload or phase failure.Easy to use like a thermal overload relay and compatible with standard motor applications,the electronic overload relay is convincing,above all,due to its wide setting range, high accuracy,high operational temperature range and the possibility to select a trip class (10E, 20E, 30E).Further features are the temperature compensation,trip contact (N.C.), signal contact (N.O.),automatic or manual reset selectable,trip‑free mechanism,STOP and TEST function and a trip indication.The overload relays are connected directly to the contactors.
