Specifications
| Manufacturer Part Number | EF96-100 |
|---|---|
| Manufacturer | ABB |
| Product Series | EF96 |
| Family Series | ABB Overload Relays, EF96 Series |
| Current Rating | 36-100 A |
| Poles | 3 |
| Output Contacts | 1NO, 1NC |
| Trip Class | Class 10, Class 20, Class 30 |
| Reset Type | Automatic, Manual |
| Connection Type | Screw Terminals |
| Ambient Temperature | -13-158 °F |
| Approvals | UL |
| H x W x D | 4.21 " x 2.97 " x 5.47 " |
| Net Weight | 1.78 lbs |
| Gross Weight | 3.78 lbs |
Description

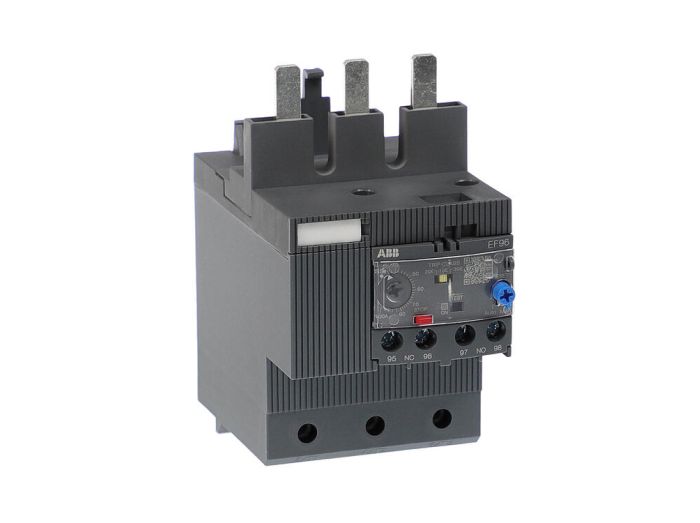

Overload Relays, EF96 Series
Item #
EF96-100
EOL, AF80-96, CLASS-10/20/30, 36-100A
EF96 Series Information
- Overload protection ‑ trip class 10E, 20E, 30E selectable
- Phase loss sensitivity
- Adjustable current setting for overload protection
- Automatic or manual reset selectable
- Trip‑free mechanism
- Status indication
- STOP and TEST function
- Direct mounting onto block contactors
- Sealable operating elements
- Self‑supplied devices
Documents & Resources Links
Accessories
Compare compatible accessories for this product.
| Image | Part | Description | Series | Type | Price | Action |
|---|---|---|---|---|---|---|
|
|
DB96 | DB96 Single mounting kit for for TF96 and EF96 | ABB Relays | Mounting Kit |
Price unavailable
|
