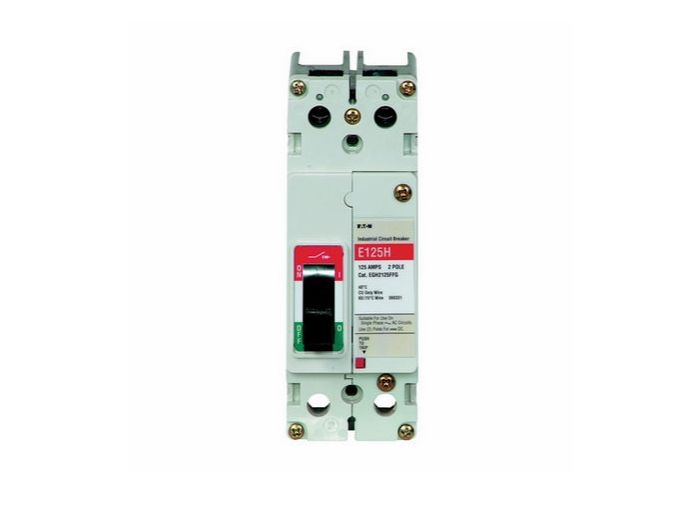

EGB2100FFG
Eaton Circuit Breakers, EG Series
Product images are for illustration purposes only. Please review specifications and documentation for exact product details.
EGB2100FFG Eaton Circuit Breakers, EG Series
EG 2P 100A 18KA BKR W/COLLARS & MTG
MFG Item Number
EGB2100FFG
Series
More specs
This item cannot be canceled or returned
Orders placed by 5:00pm Eastern time will ship today. If you would like to pick up your order, select Will Call during checkout if it is available.
Description
Circuit Breakers, EG Series
Item #
EGB2100FFG
EG 2P 100A 18KA BKR W/COLLARS & MTG
EG Series Information
- Branch Circuit Protector
- UL 489
- UL/CSA/CE/IEC Listed
- 15 ~ 160 Amps
- 240/480/600 VAC 125/250 VDC
- Designed for Global Use
- Electronic Trip Units Available
- Built‑in ground fault protection down to 20 amperes.
- UL‑listed and IEC‑rated, 30 mA ground fault/earth leakage modules.
Specifications
| Manufacturer Part Number | EGB2100FFG |
|---|---|
| Manufacturer | Eaton |
| Product Series | EG |
| Family Series | Eaton Circuit Breakers, EG Series |
| Description | EG 2P 100A 18KA BKR W/COLLARS & MTG HDWR |
| Poles | 2 |
| Current Rating | 100 A |
| Max Voltage | 480 VAC |
| Trip Unit | Fixed Thermal / Fixed Magnetic |
| Mounting | Panel |
| Neutral Pole | No |
| Neutral Protection | No |
| 100% Rated | No |
| Auxiliary Switch | Optional |
| Shunt Trip | Optional |
| Undervoltage Release | Optional |
| Alarm Switch | Optional |
| UL Standard | 489 |
| H x W x D | 3.70 " x 2.90 " x 6.10 " |
| Gross Weight | 1.15 lbs |
| Net Weight | 1.1 lbs |
