EGE3040AFG
Eaton Circuit Breakers, G Series

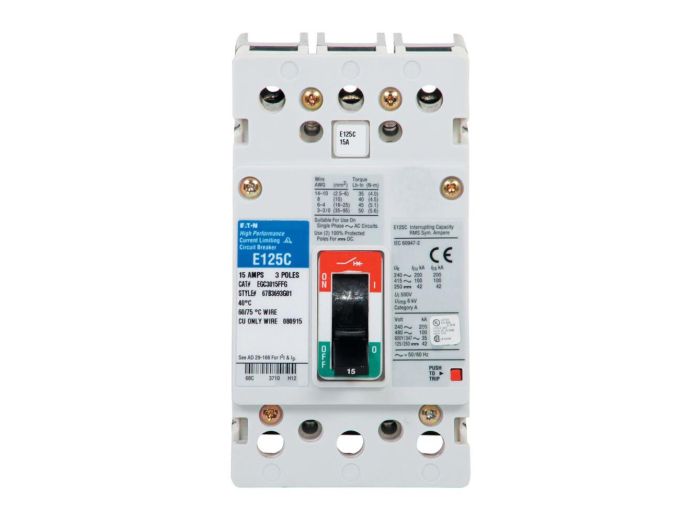

Product images are for illustration purposes only. Please review specifications and documentation for exact product details.
EGE3040AFG Eaton Circuit Breakers, G Series
EG 3P 40A ADJ therm FXD MAG 25KA 415
MFG Item Number
EGE3040AFG
Series
More specs
This item cannot be canceled or returned
Orders placed by 5:00pm Eastern time will ship today. If you would like to pick up your order, select Will Call during checkout if it is available.
Description
Circuit Breakers, G Series
Item #
EGE3040AFG
EG 3P 40A ADJ therm FXD MAG 25KA 415
G Series Information
- Compact Design Frees up Panel Space
- Common Field‑Fit Internal Accessories Make Installation and Custom Configuration Easy
- Advanced Trip Unit Functionality Offers a Wide Range of Adjustment for Maximum Flexibility
- Features High‑Speed "Blow‑Open" Action
- Mounting Hardware and Lugs are Included for Convenience
Eaton Series G molded case circuit breakers provide increased performance in considerably less space than standard circuit breakers or comparable fusible devices. The "G" signifies global applications: Series G circuit breakers are marked with UL, CSA, CE, IEC and KEMA KEUR listings. The Series G family includes five frame sizes in ratings from 15 to 2500 amperes. Series G offers a choice of several interrupting capacities up to 200 kA at 480 volts AC (200 kA at 240 volts AC).
Specifications
| Manufacturer Part Number | EGE3040AFG |
|---|---|
| Manufacturer | Eaton |
| Product Series | G |
| Family Series | Eaton Circuit Breakers, G Series |
| Description | Eaton Series G molded case circuit breaker, EG-frame, EG, Adjustable thermal, fixed magnetic trip, Three-pole, 40A, 600Y/347 Vac, 35 kAIC at 240 Vac, 25 kAIC at 480 Vac, 18 kAIC at 600Y/347 Vac, Line and load, 50/60 Hz |
| Poles | 3 |
| Current Rating | 40 A |
| Max Voltage | 347 VAC, 600 VAC |
| Trip Unit | Adj. Thermal / Fixed Magnetic |
| UL Standard | 489 |
| Approvals | CSA, IEC |
| Gross Weight | 3 lbs |
| Net Weight | 3 lbs |
