EGH3100FFG
Eaton Circuit Breakers, G Series
Product images are for illustration purposes only. Please review specifications and documentation for exact product details.

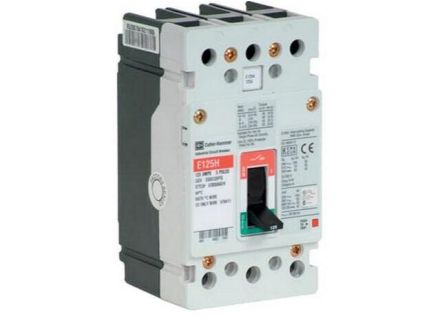

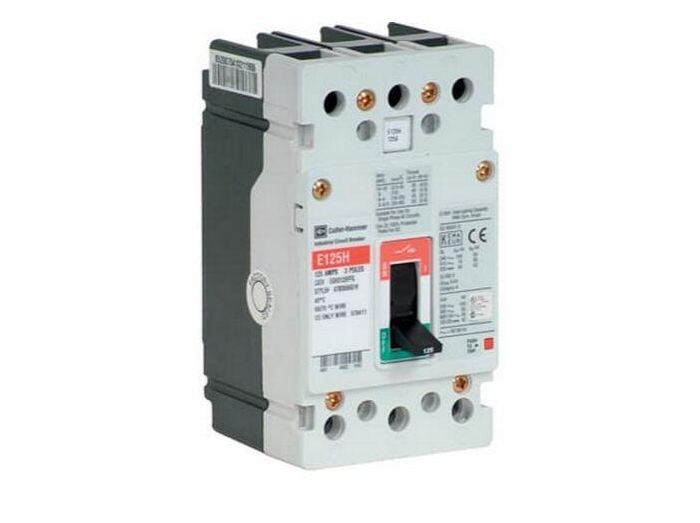

EGH3100FFG Eaton Circuit Breakers, G Series
CIRCUIT BREAKER, 3-P, 100A/600V
MFG Item Number
EATON-67B3606G17
Item Number
EGH3100FFG
Series
More specs
This item cannot be canceled or returned
Orders placed by 5:00pm Eastern time will ship today. If you would like to pick up your order, select Will Call during checkout if it is available.
Accessories
Description
Circuit Breakers, G Series
Item #
EGH3100FFG
CIRCUIT BREAKER, 3-P, 100A/600V
G Series Information
- Compact Design Frees up Panel Space
- Common Field‑Fit Internal Accessories Make Installation and Custom Configuration Easy
- Advanced Trip Unit Functionality Offers a Wide Range of Adjustment for Maximum Flexibility
- Features High‑Speed "Blow‑Open" Action
- Mounting Hardware and Lugs are Included for Convenience
Eaton Series G molded case circuit breakers provide increased performance in considerably less space than standard circuit breakers or comparable fusible devices. The "G" signifies global applications: Series G circuit breakers are marked with UL, CSA, CE, IEC and KEMA KEUR listings. The Series G family includes five frame sizes in ratings from 15 to 2500 amperes. Series G offers a choice of several interrupting capacities up to 200 kA at 480 volts AC (200 kA at 240 volts AC).
Specifications
| Manufacturer Part Number | EATON-67B3606G17 |
|---|---|
| Manufacturer | Eaton |
| Product Series | G |
| Family Series | Eaton Circuit Breakers, G Series |
| Description | CIRCUIT BREAKER, 3-P, 100A/600V 65kAIC@480VAC, W/ LINE & LOAD TERMS FIXED THERMAL MAG |
| Poles | 3 |
| Current Rating | 100 A |
| Max Voltage | 480 VAC |
| Trip Unit | Fixed Thermal / Fixed Magnetic |
| Mounting | DIN Rail |
| Terminal Type | Box Terminal |
| Auxiliary Switch | Optional |
| Shunt Trip | Optional |
| Undervoltage Release | Optional |
| UL Standard | 489 |
| Approvals | CE, CSA, IEC, UL |
| H x W x D | 5.00 " x 4.00 " x 6.50 " |
| Gross Weight | 3 lbs |
| Net Weight | 3 lbs |
