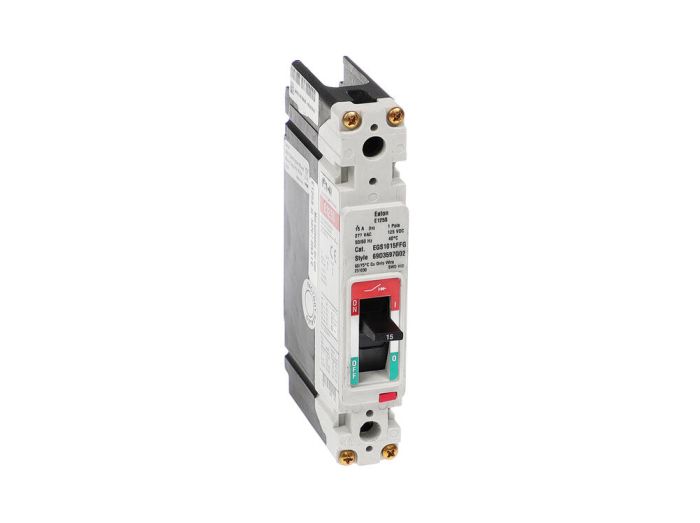

Product images are for illustration purposes only. Please review specifications and documentation for exact product details.
Series
EGS1015FFG Eaton Circuit Breakers, G Series
MFG #:
EGS1015FFG
Eaton Series G molded case circuit breaker, EG-frame, EG, Fixed thermal, fixed magnetic trip, Single-pole, 15A, 600Y/347 Vac, 85 kAIC at 240 Vac, 35 kAIC at 480 Vac, 22 kAIC at 600Y/347 Vac, Line and load, 50/60 Hz
Specifications
| Country of Origin | Dominican Republic |
|---|---|
| Manufacturer Part Number | EGS1015FFG |
| Manufacturer | Eaton |
| Product Series | G |
| Family Series | Eaton Circuit Breakers, G Series |
| Poles | 1 |
| Current Rating | 15 A |
| Max Voltage | 277 VAC |
| Trip Unit | Fixed Thermal / Fixed Magnetic |
| Mounting | DIN Rail |
| Terminal Type | Box Terminal |
| Auxiliary Switch | Optional |
| Shunt Trip | Optional |
| Undervoltage Release | Optional |
| UL Standard | 489 |
| Approvals | CE, CSA, IEC, UL |
| H x W x D | 3.50 " x 1.00 " x 5.60 " |
| Gross Weight | 1.135 lbs |
| Net Weight | 0.92 lbs |
Description
Circuit Breakers, G Series
Item #
EGS1015FFG
E 1P BRK, 15 A, 35 kA 277VAC, UL/IEC
G Series Information
- Compact Design Frees up Panel Space
- Common Field‑Fit Internal Accessories Make Installation and Custom Configuration Easy
- Advanced Trip Unit Functionality Offers a Wide Range of Adjustment for Maximum Flexibility
- Features High‑Speed "Blow‑Open" Action
- Mounting Hardware and Lugs are Included for Convenience
Eaton Series G molded case circuit breakers provide increased performance in considerably less space than standard circuit breakers or comparable fusible devices. The "G" signifies global applications: Series G circuit breakers are marked with UL, CSA, CE, IEC and KEMA KEUR listings. The Series G family includes five frame sizes in ratings from 15 to 2500 amperes. Series G offers a choice of several interrupting capacities up to 200 kA at 480 volts AC (200 kA at 240 volts AC).
