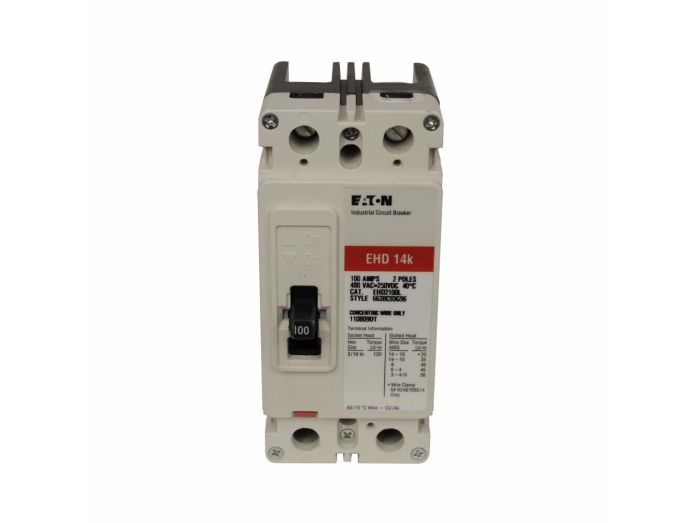

Product images are for illustration purposes only. Please review specifications and documentation for exact product details.
Series
EHD2080H08 Eaton Circuit Breakers, C Series
MFG #:
EATON-EHD2080H08
Item Number
EHD2080H08
Eaton Series C complete molded case circuit breaker, F-frame, EHD, Complete breaker, Fixed thermal, fixed magnetic trip type, Two-pole, 80A, 18 kAIC at 240 Vac, 14 kAIC at 480 Vac, Load side, Marine, 50/60 Hz
Specifications
| Country of Origin | Dominican Republic |
|---|---|
| Manufacturer Part Number | EATON-EHD2080H08 |
| Manufacturer | Eaton |
| Product Series | C |
| Family Series | Eaton Circuit Breakers, C Series |
| Poles | 2 |
| Current Rating | 80 A |
| Trip Unit | Fixed Thermal / Fixed Magnetic |
| Mounting | Panel |
| UL Standard | 489 |
| Approvals | UL |
| H x W x D | 3.38 " x 2.75 " x 6.00 " |
| Gross Weight | 3 lbs |
| Net Weight | 3 lbs |
Description
Circuit Breakers, C Series
Item #
EHD2080H08
EHD 2P 80A MARINE APPL
C Series Information
- Ranges from 15‑2500 amperes
- High‑speed "blow‑open" action
- Available for 600 VAC or 250 VDC systems
- Current ratings up to 2500A
- Outperform calculations listed in IEEE
Eaton's Electrical Sector, under the Eaton brand, offers the widest variety of molded case circuit breakers available today. Designed for electrical and machinery OEMs serving a range of industries and applications, these proven designs incorporate the latest in innovation with the high reliability that has been our hallmark since the advent of the circuit breaker in the 1920s. The Series C family includes thermal‑magnetic breakers, electronic trip breakers, molded case switches, motor circuit protectors, and specially designed breakers for engine generator, DC and mining applications.
