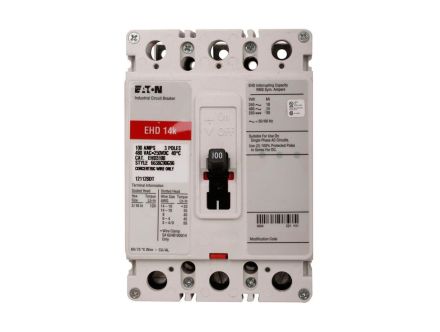

EHD3040L Eaton Circuit Breakers, C Series
Eaton Series C complete MCCB
MFG Item Number
EATON-6638C94G89
Eaton

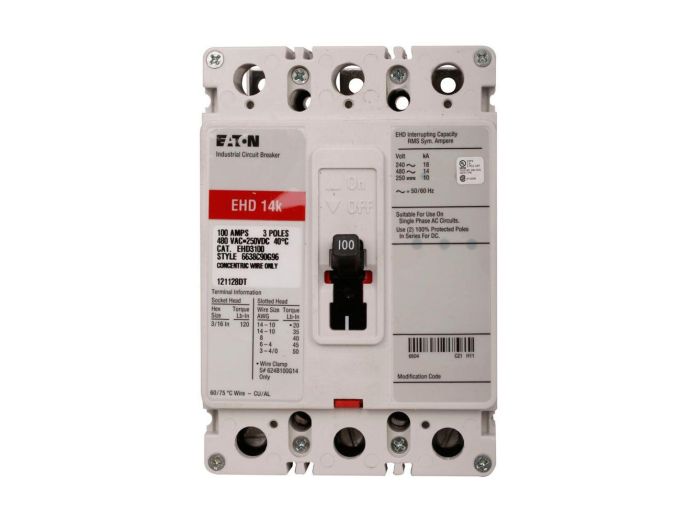

main product photo

Product images are for illustration purposes only. Please review specifications and documentation for exact product details.

EHD3040L Eaton Circuit Breakers, C Series

Eaton Series C complete MCCB
MFG Item Number
EATON-6638C94G89
Eaton
Item Number
EHD3040L
Series
C
More specs
This item cannot be canceled or returned

Orders placed by 5:00pm Eastern time will ship today. If you would like to pick up your order, select Will Call during checkout if it is available.
Request Lead Time

Description

Circuit Breakers, C Series
Item #
EHD3040L
Eaton Series C complete MCCB

C Series Information

  • Ranges from 15‑2500 amperes
  • High‑speed "blow‑open" action
  • Available for 600 VAC or 250 VDC systems
  • Current ratings up to 2500A
  • Outperform calculations listed in IEEE

Eaton's Electrical Sector, under the Eaton brand, offers the widest variety of molded case circuit breakers available today. Designed for electrical and machinery OEMs serving a range of industries and applications, these proven designs incorporate the latest in innovation with the high reliability that has been our hallmark since the advent of the circuit breaker in the 1920s. The Series C family includes thermal‑magnetic breakers, electronic trip breakers, molded case switches, motor circuit protectors, and specially designed breakers for engine generator, DC and mining applications.

Links

Videos

Specifications

Specifications
Country of Origin Dominican Republic
Manufacturer Part Number EATON-6638C94G89
Manufacturer Eaton
Product Series C
Family Series Eaton Circuit Breakers, C Series
Description Eaton Series C complete molded case circuit breaker, F-frame, EHD, Complete breaker, Fixed thermal, fixed magnetic trip type, Three-pole, 40A, 18 kAIC at 240 Vac, 14 kAIC at 480 Vac, Line and load, 50/60 Hz
Poles 3
Current Rating 40 A
Max Voltage 480 VAC
Trip Unit Fixed Thermal / Fixed Magnetic
Mounting Panel
Neutral Pole No
Neutral Protection No
100% Rated No
Auxiliary Switch Optional
Shunt Trip Optional
Undervoltage Release Optional
Alarm Switch Optional
UL Standard 489
H x W x D 4.90 " x 5.00 " x 7.40 "
Gross Weight 4.55 lbs
Net Weight 4.5 lbs
