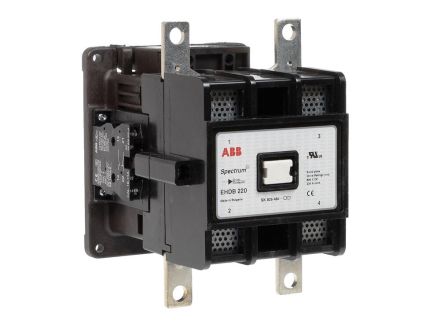

EHDB220C2P-1L
ABB Contactors, EHDB Series
Product images are for illustration purposes only. Please review specifications and documentation for exact product details.
EHDB220C2P-1L ABB Contactors, EHDB Series
CONTACTOR,120V,2 POLE
MFG Item Number
EHDB220C2P-1L
Series
More specs
This item cannot be canceled or returned
Orders placed by 5:00pm Eastern time will ship today. If you would like to pick up your order, select Will Call during checkout if it is available.
Accessories
Description
Contactors, EHDB Series
Item #
EHDB220C2P-1L
CONTACTOR,120V,2 POLE
EHDB Series Information
- 24~600 VAC/VDC Coils
- Make 300 VDC
- Break 160 VDC
- UL; CSA Approved
- Up to 960 Amps
- 2 and 3 Poles
- DC Control Operation Available
Specifications
| Manufacturer Part Number | EHDB220C2P-1L |
|---|---|
| Manufacturer | ABB |
| Product Series | EHDB |
| Family Series | ABB Contactors, EHDB Series |
| Description | Drive Contactor, 2-P N/O, 120VAC Coil |
| Coil Type | Magnetic |
| Nominal Coil Voltage | 120 VAC |
| Coil Voltage | 120 VAC |
| Poles | 2NO |
| Mechanically Interlocked | No |
| Auxiliary Contact | 1NO, 1NC |
| Termination | Box Lug |
| H x W x D | 6.65 " x 5.40 " x 7.80 " |
| Net Weight | 8.73 lbs |
| Gross Weight | 10.035 lbs |
