Specifications
| Manufacturer Part Number | EHDB280C-1L |
|---|---|
| Manufacturer | ABB |
| Product Series | EHDB |
| Family Series | ABB Contactors, EHDB Series |
| Coil Type | Magnetic |
| Nominal Coil Voltage | 120 VAC |
| Coil Voltage | 120 VAC |
| Poles | 2NO, 1NC |
| Mechanically Interlocked | No |
| Auxiliary Contact | 1NO, 1NC |
| Termination | Box Lug |
| H x W x D | 7.09 " x 2.74 " x 8.66 " |
| Net Weight | 8.715 lbs |
| Gross Weight | 10.64 lbs |
Description
Contactors, EHDB Series
Item #

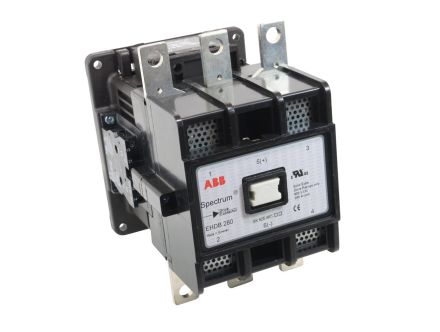

EHDB280C-1L
CONTACTOR, 280A, 3P
EHDB Series Information
- 24~600 VAC/VDC Coils
- Make 300 VDC
- Break 160 VDC
- UL; CSA Approved
- Up to 960 Amps
- 2 and 3 Poles
- DC Control Operation Available
Documents & Resources Links
Videos
Alternatives
Compare available alternatives using the specifications that matter for this product.
| Image | Part | Description | Series | Nominal Coil Voltage | Price | Action |
|---|---|---|---|---|---|---|
|
EHDB280C-1L11 | CONTACTOR | ABB Contactors | 120 VAC |
Quote Required
|
Accessories
Compare compatible accessories for this product.
| Image | Part | Description | Series | Poles | Price | Action |
|---|---|---|---|---|---|---|
|
CAL16-11B | Auxiliary Contact Block, 1NO/1NC | ABB Contactors |
Price unavailable
|
||
|
EHDBCK280-2 | CONTACTOR KIT, 2-POLE N/O CONTACTOR SIZE EHDB280 | ABB Contactors | 2 |
Price unavailable
|
|
|
EHDBCK280-NC | CONTACT KIT, 1-POLE N/C ONLY N/C REPLACEMENT CONTACT FOR EHDB280 SERIES CONTACTORS | ABB Contactors |
Price unavailable
|
||
|
EHDBRC280-1 | Replacement Coil, 120VAC, for EHDB220 Contactor with Withdrawable Type Coil, SK825400-AF | ABB Contactors |
Quote Required
|
||
|
EHTK210 | Terminal Lug Kit, 3 Lugs/Pk, Accepts (1)6AWG-250MCM Wire/Lug | ABB Contactors |
Price unavailable
|
