Specifications
| Manufacturer Part Number | EHDB650C-1L |
|---|---|
| Manufacturer | ABB |
| Product Series | EHDB |
| Family Series | ABB Contactors, EHDB Series |
| Coil Type | Magnetic |
| Nominal Coil Voltage | 120 VAC |
| Coil Voltage | 120 VAC |
| Poles | 2NO, 1NC |
| Mechanically Interlocked | No |
| Auxiliary Contact | 1NO, 1NC |
| Termination | Box Lug |
| H x W x D | 1.00 " x 1.00 " x 1.00 " |
| Net Weight | 28.47 lbs |
| Gross Weight | 30.88 lbs |
Description

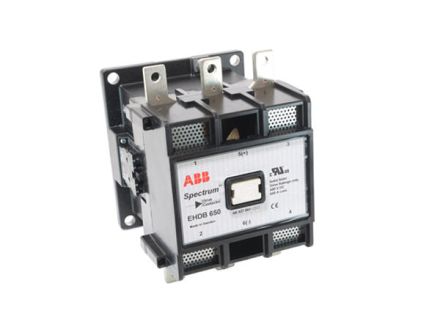

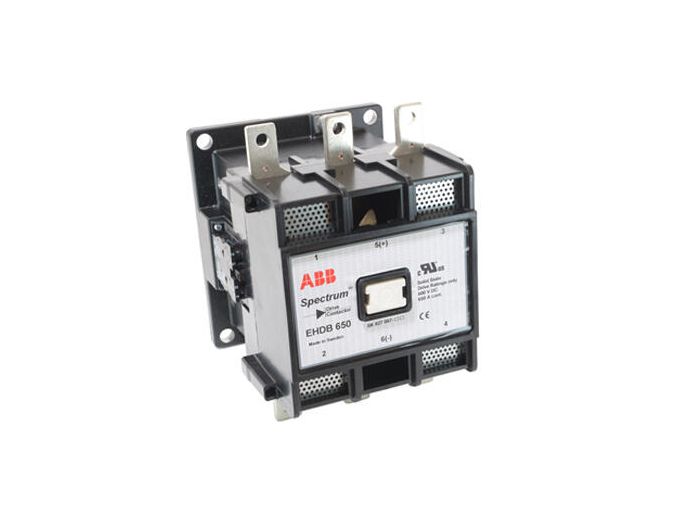

Contactors, EHDB Series
Item #
EHDB650C-1L
CONTACTOR
EHDB Series Information
- 24~600 VAC/VDC Coils
- Make 300 VDC
- Break 160 VDC
- UL; CSA Approved
- Up to 960 Amps
- 2 and 3 Poles
- DC Control Operation Available
