ELC-PS02
Eaton Power Supplies, ELC Series
Product images are for illustration purposes only. Please review specifications and documentation for exact product details.

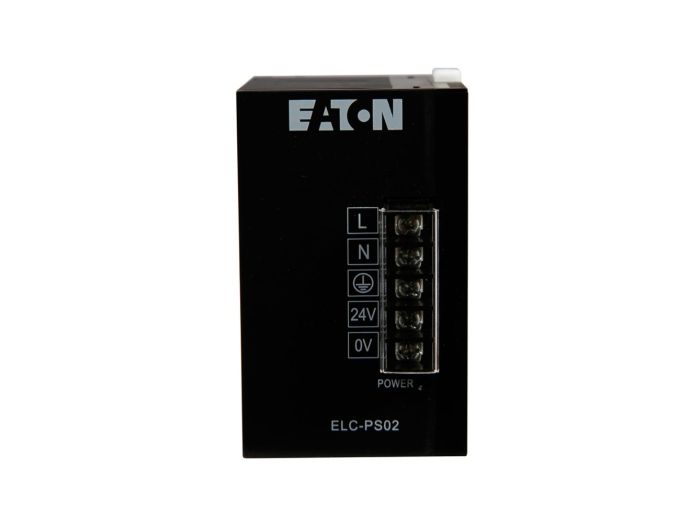

ELC-PS02 Eaton Power Supplies, ELC Series
ELC Power Supply, 48 Watt, 2 Amp
MFG Item Number
ELC-PS02
Series
More specs
This item cannot be canceled or returned
Orders placed by 5:00pm Eastern time will ship today. If you would like to pick up your order, select Will Call during checkout if it is available.
Description
Power Supplies, ELC Series
Item #
ELC-PS02
ELC Power Supply, 48 Watt, 2 Amp
ELC Series Information
The ELC family offers four styles of controllers. These controllers offer combinations of the following features: high speed pulse capture and high‑speed pulse output on all controllers, large module selection AC/DC in, relay/transistor out, large analog selection of analog in, out, combined, thermocouple, RTD Platinum, over 200 Instructions to choose from, and 2 Modbus serial ports.
Specifications
| Country of Origin | China |
|---|---|
| Manufacturer Part Number | ELC-PS02 |
| Manufacturer | Eaton |
| Product Series | ELC |
| Family Series | Eaton Power Supplies, ELC Series |
| Description | ELC Series Programmable Logic Controllers, ELC power supply, 48W, 2A, 50/60 Hz, 24 Vdc Output, 100~240 VAC -15~+10 Input |
| Power | 48 W |
| Nominal Input Voltage | 120 VAC, 240 VAC |
| AC Voltage | 85-264 VAC |
| Input Frequency | 47-63 Hz |
| Phase | 1 |
| Nominal Output Voltage | 24 VDC |
| Output VDC | 23-25 VDC |
| Output Current | 2 A |
| Number of Outputs | 1 |
| Mounting | DIN Rail |
| Enclosed | Yes |
| Encapsulated | No |
| Output Voltage Adj. | Yes |
| Overvoltage Protection | No |
| Overload Protection | Yes |
| Short Circuit Protection | Yes |
| Power Factor Correction | No |
| Parallel Operation | No |
| Remote Sensing | No |
| Remote On/Off Control | No |
| Operating Temperature | 32-131 °F |
| Approvals | CE, UL508 |
| Net Weight | 0.8 lbs |
| Gross Weight | 0.8 lbs |
