Specifications
| Manufacturer Part Number | EM3768T |
|---|---|
| Manufacturer | Baldor-ABB Motors |
| Product Series | M |
| Family Series | Baldor-ABB Motors Motors, M Series |
| Type | General Purpose |
| Horsepower | 5 hp |
| Speed | 1,200 RPM |
| RPM | 1,200 RPM |
| Phase | 3 |
| NEMA Frame | 215T |
| AC Voltage | 208-230 VAC, 460 VAC |
| Nominal Voltage | 208 VAC, 240 VAC, 415 VAC, 480 VAC |
| Enclosure | Totally Enclosed Fan Cooled |
| Mounting | Foot Mount, Rigid |
| Current Rating | 7.4 A |
| Service Factor | 1.15 |
| Inverter Duty | No |
| Composition | Cast Iron |
| Bearing Type | Ball |
| Overload Protection | None |
| Length | 18.45 " |
| H x W x D | 19.00 " x 18.00 " x 28.50 " |
| Net Weight | 195 lbs |
| Gross Weight | 195 lbs |
Description

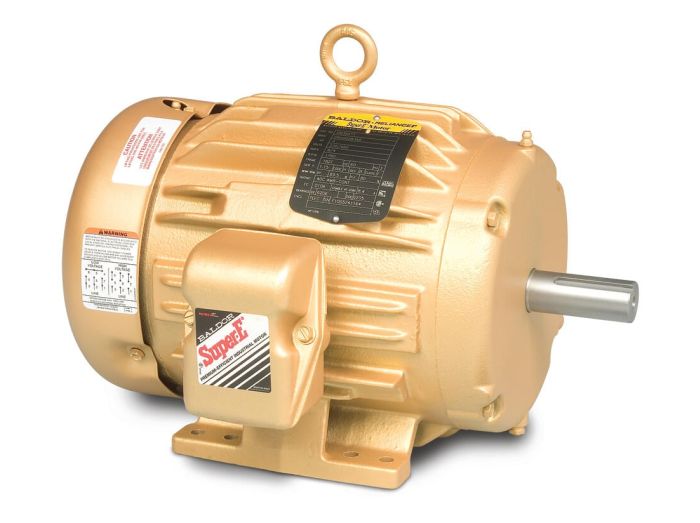

Motors, M Series
Item #
EM3768T
5HP, 1160RPM, 3PH, 60HZ, 215T, 0746M
M Series Information
Documents & Resources Links
Alternatives
Compare available alternatives using the specifications that matter for this product.
| Image | Part | Description | Voltage | Mounting | Series | Price | Action |
|---|---|---|---|---|---|---|---|
|
171379.60 | Motor, 5HP, 208-230/460V, 1180RPM TEFC Wattsaver | 208 VAC, 240 VAC, 480 VAC | Foot Mount, Rigid | Three Phase TEFC |
Quote Required
|
