Product images are for illustration purposes only. Please review specifications and documentation for exact product details.
Series

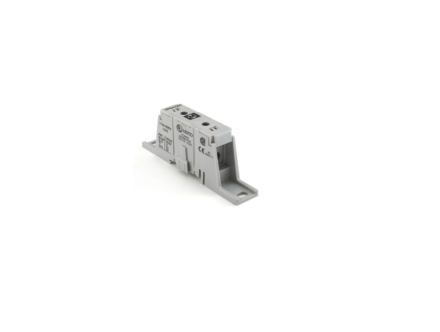

EPBAD21-3 Marathon Special Products Power Distribution Blocks, EPB Series
MFG #:
EPBAD21-3
Splicer Block, 3-P, 115A, Bx/Bx Line & Load: (1)2AWG-14AWG, UL1953, 600VAC/DC, Aluminum, Panel/DIN Mount
Specifications
| Manufacturer Part Number | EPBAD21-3 |
|---|---|
| Manufacturer | Marathon Special Products |
| Product Series | EPB |
| Family Series | Marathon Special Products Power Distribution Blocks, EPB Series |
| Number of Poles | 3 |
| AC Voltage | 600 VAC |
| Current Rating | 115 A |
| Number of Inputs per Pole | 1 |
| Number of Outputs per Pole | 1 |
| Electrical Connection | Box Lug/Box Lug |
| Mounting | DIN Rail/Panel Mount |
| Line Side Wire Range | 2-14 AWG |
| Output Wire Range | 2-14 AWG |
| Cover Included | Yes |
| Composition | Thermoplastic |
| Protection Rating | IP20 |
| Color | Gray |
| Approvals | CE, CSA, UL |
| H x W x D | 1.70 " x 0.85 " x 12.30 " |
| Net Weight | 0.225 lbs |
| Gross Weight | 0.225 lbs |
Description
Power Distribution Blocks, EPB Series
Item #
EPBAD21-3
Splicer Block, 3-P, 115A, Bx/Bx
EPB Series Information
- High‑Strength thermoplastic or Phenolic insulator construction
- Optional hinged covers.
- Aluminum or copper connectors.
- Panel or DIN rail mounting for easy application.
