Product images are for illustration purposes only. Please review specifications and documentation for exact product details.
Series

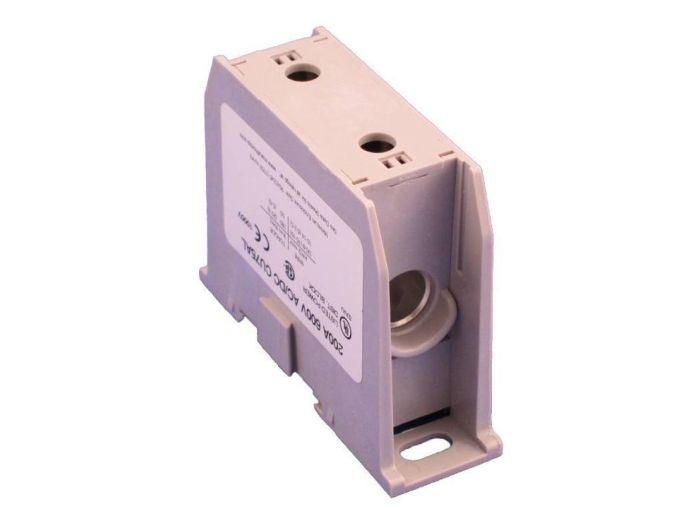

EPBCP42 Marathon Special Products Power Distribution Blocks, EPB Series
MFG #:
EPBCP42
Splicer Block, 1-P, 200A, Bx/Bx, Line & Load:(1)3/0-14AWG, UL1953, 600VAC/DC, Copper, Panel Mount
Specifications
| Manufacturer Part Number | EPBCP42 |
|---|---|
| Manufacturer | Marathon Special Products |
| Product Series | EPB |
| Family Series | Marathon Special Products Power Distribution Blocks, EPB Series |
| Number of Poles | 1 |
| AC Voltage | 600 VAC |
| Current Rating | 200 A |
| Number of Inputs per Pole | 1 |
| Number of Outputs per Pole | 1 |
| Electrical Connection | Box Lug/Box Lug |
| Mounting | Panel Mount |
| Line Side Wire Range | 3/0-14 AWG |
| Output Wire Range | 3/0-14 AWG |
| Cover Included | Yes |
| Composition | Thermoplastic |
| Protection Rating | IP20 |
| Color | Gray |
| Approvals | CE, CSA, UL |
| H x W x D | 2.71 " x 1.11 " x 3.61 " |
| Net Weight | 0.37 lbs |
| Gross Weight | 0.545 lbs |
Description
Power Distribution Blocks, EPB Series
Item #
EPBCP42
Splicer Block, 1-P, 200A, Bx/Bx,
EPB Series Information
- High‑Strength thermoplastic or Phenolic insulator construction
- Optional hinged covers.
- Aluminum or copper connectors.
- Panel or DIN rail mounting for easy application.
Documents & Resources Links
Videos
Alternatives
Compare available alternatives using the specifications that matter for this product.
| Image | Part | Description | Voltage | Mounting | Series | Price | Action |
|---|---|---|---|---|---|---|---|
|
EPBAP42 | Splicer Block, 1-P, 200A, Bx/Bx, Line & Load:(1)3/0-14AWG, UL1953, 600VAC/DC, Aluminum, Panel Mount | 600 VAC | Panel Mount | EPB |
Price unavailable
|
Accessories
Compare compatible accessories for this product.
| Image | Part | Description | Series | Composition | Price | Action |
|---|---|---|---|---|---|---|
|
|
MSK35 | End Bracket | Marathon Special Products Terminal Blocks | Non-Metallic |
Price unavailable
|
