Product images are for illustration purposes only. Please review specifications and documentation for exact product details.
Series

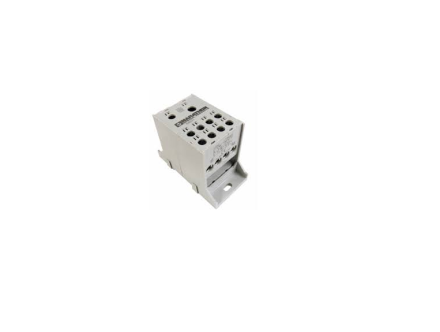

EPBCP74-2 Marathon Special Products Power Distribution Blocks, EPB Series
MFG #:
EPBCP74-2
Distribution Block, 2-P, 335A,Bx/Bx, Line:(1)400MCM-6AWG&(1)2/0-14AWG, Load:(8)2-14AWG, Panel Mnt, Copper
Specifications
| Manufacturer Part Number | EPBCP74-2 |
|---|---|
| Manufacturer | Marathon Special Products |
| Product Series | EPB |
| Family Series | Marathon Special Products Power Distribution Blocks, EPB Series |
| Number of Poles | 2 |
| AC Voltage | 600 VAC |
| Current Rating | 335 A |
| Number of Inputs per Pole | 1 |
| Number of Outputs per Pole | 8 |
| Electrical Connection | Box Lug/Box Lug |
| Mounting | Panel Mount |
| Line Side Wire Range | 2/0-14 AWG |
| Output Wire Range | 2-14 AWG |
| Cover Included | Yes |
| Composition | Thermoplastic |
| Protection Rating | IP20 |
| Color | Gray |
| Approvals | CE, CSA, UL |
| H x W x D | 3.55 " x 5.10 " x 7.70 " |
| Net Weight | 3.49 lbs |
| Gross Weight | 3.49 lbs |
Description
Power Distribution Blocks, EPB Series
Item #
EPBCP74-2
Distribution Block, 2-P, 335A,Bx/Bx,
EPB Series Information
- High‑Strength thermoplastic or Phenolic insulator construction
- Optional hinged covers.
- Aluminum or copper connectors.
- Panel or DIN rail mounting for easy application.
