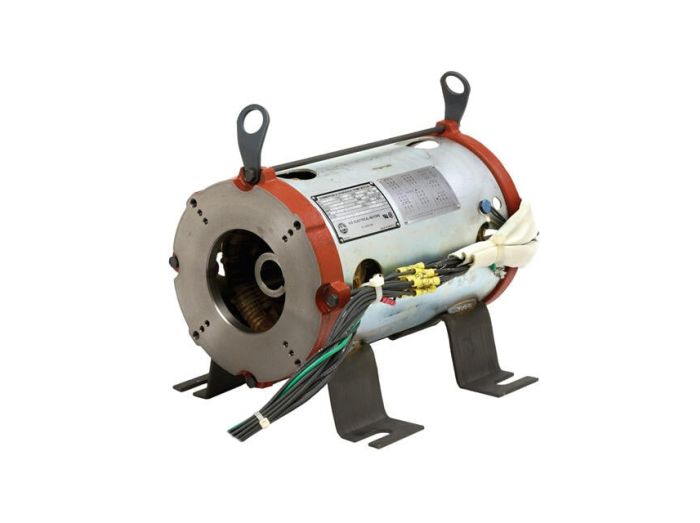

EZ15S1BZ
MFG #:
EZ15S1BZ
Specifications
| Country of Origin | Mexico |
|---|---|
| Manufacturer Part Number | EZ15S1BZ |
| Manufacturer | US Motors |
| Family Series | US Motors Motors |
| Type | Submersible Elevator Motor |
| Horsepower | 15 hp |
| Kilowatts | 11.2 kW |
| Speed | 3,470 RPM |
| RPM | 3,470 RPM |
| Number of Poles | 2 |
| Phase | 3 |
| Frequency | 60 Hz |
| NEMA Frame | 160ZBS |
| AC Voltage | 230 VAC, 460 VAC |
| Nominal Voltage | 240 VAC, 480 VAC |
| Enclosure | Totally Enclosed |
| Mounting | Foot Mount |
| Current Rating | 44 A |
| Composition | Rolled Steel |
| Net Weight | 101 lbs |
| Gross Weight | 101 lbs |
Description
Motors, Series
Item #
EZ15S1BZ
Motor, 15/10 HP, 3600 RPM, 160ZBS
