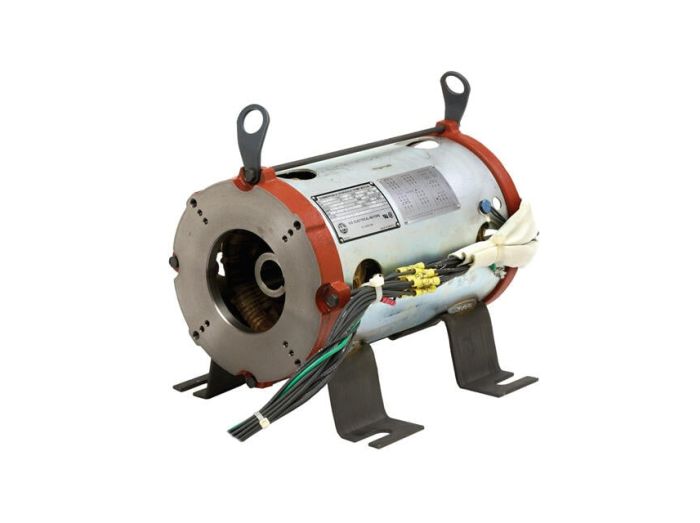

EZ50S1HZ
MFG #:
EZ50S1HZ
Specifications
| Country of Origin | Mexico |
|---|---|
| Manufacturer Part Number | EZ50S1HZ |
| Manufacturer | US Motors |
| Family Series | US Motors Motors |
| Type | Submersible Elevator Motor |
| Horsepower | 50 hp |
| Kilowatts | 37.3 kW |
| Speed | 3,475 RPM |
| RPM | 3,475 RPM |
| Number of Poles | 2 |
| Phase | 3 |
| Frequency | 60 Hz |
| NEMA Frame | 160ZBS |
| AC Voltage | 200 VAC |
| Nominal Voltage | 240 VAC |
| Enclosure | Totally Enclosed |
| Mounting | Foot Mount |
| Current Rating | 146 A |
| Composition | Rolled Steel |
| Net Weight | 156.6 lbs |
| Gross Weight | 156.6 lbs |
Description
Motors, Series
Item #
EZ50S1HZ
Motor, 50/40 HP, 3600 RPM, 160ZBS
Series Information
Documents & Resources Links
Added to Cart
EZ50S1HZ US Motors Motors, Motor, 50/40 HP, 3600 RPM, 160ZBS
MFG #:
EZ50S1HZ
Motor, 50/40 HP, 3600 RPM, 160ZBS
