Specifications
| Manufacturer Part Number | F30A1S |
|---|---|
| Manufacturer | Marathon Special Products |
| Product Series | CLASS H |
| Family Series | Marathon Special Products Fuseblocks & Holders, CLASS H Series |
| Current Rating | 30 A |
| Voltage | 250 V |
| Poles | 1 |
| Fuse Type | Class H |
| Class | H |
| Connection Type | Screw Terminal |
| Mounting | Panel Mount |
| Composition | Thermoplastic |
| Trip Indicator | No |
| Reinforced | No |
| Enclosed | No |
| Touch Safe | No |
| Approvals | CE, CSA, UL |
| H x W x D | 1.38 " x 1.12 " x 3.00 " |
| Net Weight | 0.1 lbs |
| Gross Weight | 0.1 lbs |
Description

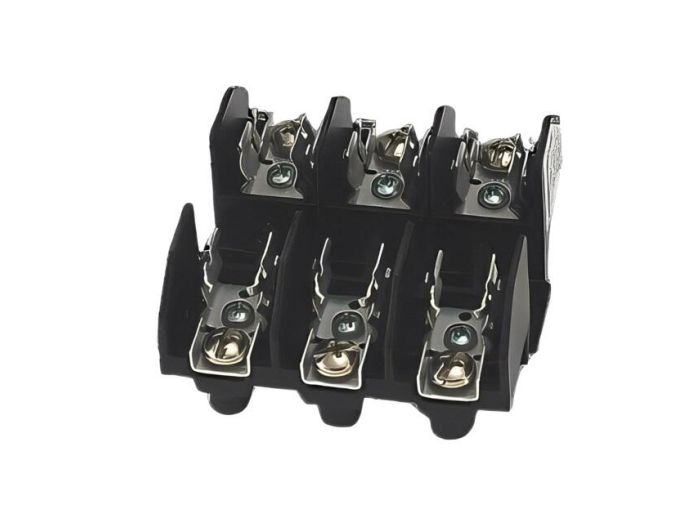

Fuseblocks & Holders, CLASS H Series
Item #
F30A1S
Fuseblock, 1-P, 30A/250V, H, Screw
CLASS H Series Information
- 30~600 Amps
- 250 or 600 Volts
- 1~3 Poles
- Panel Mount
- Various Terminal Types
Marathon Class H Fuse blocks accommodate all Class H 250V and 600V power fuses. A choice of screw terminals, pressure connectors, box lugs, and copper box lug wire connectors are available.
