Specifications

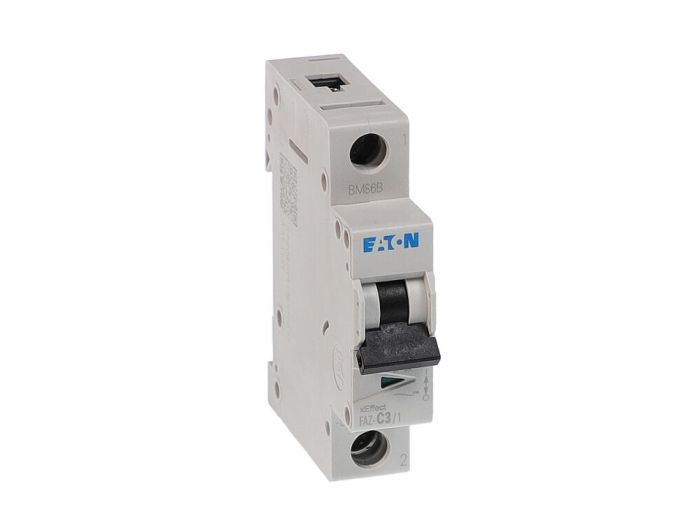

Manufacturer Part Number	FAZ-C3/1-SP
Manufacturer	Eaton
Product Series	FAZ
Family Series	Eaton Circuit Breakers, FAZ Series
Poles	1
Current Rating	3 A
Max Voltage	277 VAC, 48 VDC
Trip Curve	C
Trip Unit	Fixed Thermal / Fixed Magnetic
Mounting	DIN Rail
Neutral Pole	No
Terminal Type	Screw
Auxiliary Switch	Optional
Shunt Trip	Optional
Undervoltage Release	Optional
Alarm Switch	Optional
UL Standard	1077
Approvals	CCC, CSA, UL, VDE
H x W x D	2.80 " x 0.70 " x 3.40 "
Net Weight	0.25 lbs
Gross Weight	0.28 lbs

Alternatives

Compare available alternatives using the specifications that matter for this product.

Alternatives comparison
Image	Part	Description	Mounting	Series	Poles	Price	Action
	ST201M-C3	ST201M-C3 Miniature Circuit Breaker ST201M-C3 Miniature Circuit Breaker C-Char., 10kA, 3A, 1P	DIN Rail	ST200M	1	Price unavailable
