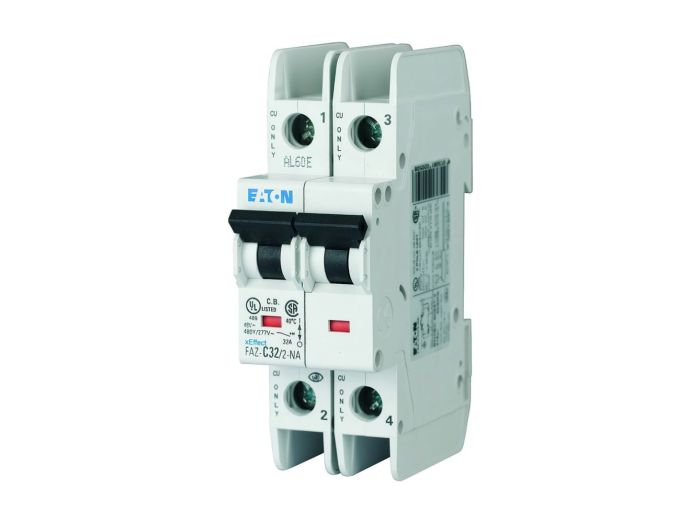

FAZ-C63/2-NA
Eaton Circuit Breakers, FAZ Series
Product images are for illustration purposes only. Please review specifications and documentation for exact product details.
FAZ-C63/2-NA Eaton Circuit Breakers, FAZ Series
FAZ-NA UL 489 MCB 240VAC 2P 63A C CURVE
MFG Item Number
FAZ-C63/2-NA
Series
More specs
This item cannot be canceled or returned
Orders placed by 5:00pm Eastern time will ship today. If you would like to pick up your order, select Will Call during checkout if it is available.
Description
Circuit Breakers, FAZ Series
Item #
FAZ-C63/2-NA
FAZ-NA UL 489 MCB 240VAC 2P 63A C CURVE
FAZ Series Information
- Design provides fast short‑circuit interruption that reduces damage to the circuit
- Power to the circuit breakers can be fed from the line or load side
- Thermal‑magnetic over‑current protection
- Dual rated for IEC 60947‑2 Standard
- DIN rail mounting solution
Specifications
| Country of Origin | Spain |
|---|---|
| Manufacturer Part Number | FAZ-C63/2-NA |
| Manufacturer | Eaton |
| Product Series | FAZ |
| Family Series | Eaton Circuit Breakers, FAZ Series |
| Description | Eaton FAZ branch protector,UL 489 Industrial miniature circuit breaker - supplementary protector,Medium levels of inrush current are expected,63 A,10 kAIC,Two-pole,240 V,5-10X /n,50-60 Hz,Screw terminals,C Curve |
| Poles | 2 |
| Current Rating | 63 A |
| Max Voltage | 240 VAC |
| Trip Curve | C |
| Trip Unit | Fixed Thermal / Fixed Magnetic |
| Mounting | DIN Rail |
| Neutral Pole | No |
| Terminal Type | Screw |
| Auxiliary Switch | Optional |
| Shunt Trip | Optional |
| Alarm Switch | Optional |
| UL Standard | 489 |
| Approvals | CCC, CSA, UL, VDE |
| H x W x D | 1.35 " x 2.85 " x 4.20 " |
| Net Weight | 0.565 lbs |
| Gross Weight | 0.61 lbs |
