Series

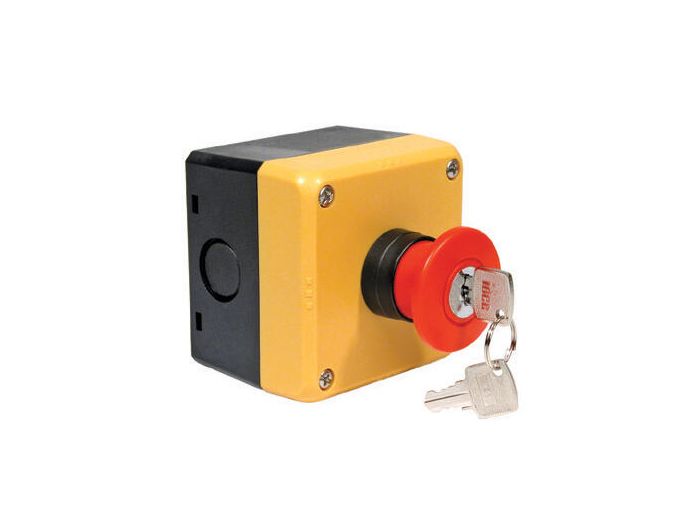

FB1W-HW1B-V402R-EMO-2 IDEC Switches, FB1W Series
MFG #:
FB1W-HW1B-V402R-EMO-2
E-STOP STATION, PLTR, 2NC, PLSTC BZL NON-ILL, 40mm RED MUSH, EMO MARKING INCLft.S 2-N/C CONTACT. N4X ENCLOSED
Specifications
| Country of Origin | Japan |
|---|---|
| Manufacturer Part Number | FB1W-HW1B-V402R-EMO-2 |
| Manufacturer | IDEC |
| Product Series | FB1W |
| Family Series | IDEC Switches, FB1W Series |
| Illuminated | No |
| Operation | Push Lock-Twist Release |
| Mounting | 22 mm |
| Operator Size (mm) | 40 mm |
| Contacts | 2NC |
| Max Voltage | 600 VAC, 600 VDC |
| Current Rating | 10 A |
| Bezel | Plastic Round |
| Lens/Button Shape | Mushroom |
| Operator Color | Red |
| Terminal Type | Screw |
| Protection Rating | IP65 |
| NEMA Rating | NEMA 1, NEMA 2, NEMA 3, NEMA 3R, NEMA 3S, NEMA 4, NEMA 4X, NEMA 5, NEMA 12, NEMA 13 |
| Approvals | CCC, CE, CSA, TUV, UL |
| Comments | E-Stop Enclosure Station, EMO Engraved. Screw |
| H x W x D | 2.34 " x 2.99 " x 2.99 " |
| Net Weight | 0.22 lbs |
| Gross Weight | 0.22 lbs |
Description
Switches, FB1W Series
Item #
FB1W-HW1B-V402R-EMO-2
E-STOP STATION, PLTR, 2NC, PLSTC BZL
FB1W Series Information
- Polycarbonate Enclosure Cover and Base, Stainless Steel Screws
- IP65 and Type 4X Rated
- Three Compact Sizes (mm): 76 x 76, 140 x 76 and 200 x 76
