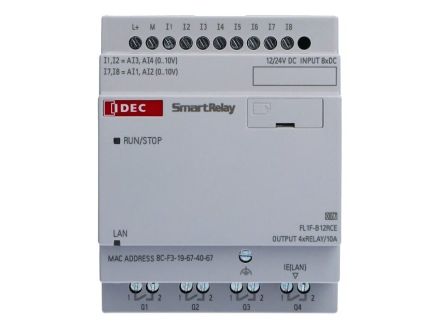

FL1F-B12RCA
IDEC Programmable Logic Controllers, SmartRelay Series
Product images are for illustration purposes only. Please review specifications and documentation for exact product details.
FL1F-B12RCA IDEC Programmable Logic Controllers, SmartRelay Series
SmartRelay, 24VAC/DC
MFG Item Number
FL1F-B12RCA
Series
More specs
This item cannot be canceled or returned
Orders placed by 5:00pm Eastern time will ship today. If you would like to pick up your order, select Will Call during checkout if it is available.
Accessories
Description
Programmable Logic Controllers, SmartRelay Series
Item #
FL1F-B12RCA
SmartRelay, 24VAC/DC
SmartRelay Series Information
Embedded RJ45 Ethernet Port
- Remote program download, upload and monitor
- Integrated web server for remote monitoring and control
- Equipped with micro SD slot for program storage, transfer and data logging
- No need for a special memory cartridge
- Up to 20,000 lines in a file with a maximum of 50 files can be stored in the Micro SD Memory card
- Easily monitor and control web pages with no HTML knowledge
- Instant monitoring and control using standard web browser like Chrome, IE and Firefox
- View and control I/O status, timer, counters, analog set point and more There's an App for that!
- Download iOS and Android App for free
- Using the SmartRelay App, users can view and control any I/O status, timer, counters, and analog set point anywhere and at any time
- FL1F SmartRelays now have the capability to communicate with each other over an Ethernet network
- Up to 16 FL1F SmartRelays can be configured on the network
Specifications
| Country of Origin | China |
|---|---|
| Manufacturer Part Number | FL1F-B12RCA |
| Manufacturer | IDEC |
| Product Series | SmartRelay |
| Family Series | IDEC Programmable Logic Controllers, SmartRelay Series |
| Description | SmartRelay, 24VAC/DC Embedded RJ45 Ethernet Port, Micro SD Memory Port, Web Server |
| Voltage | 20.4-26.4 VAC, 20.4-28.8 VDC |
| Nominal Voltage | 24 VAC, 24 VDC |
| Number of Inputs & Type | 8 - Digital |
| Number of Outputs & Type | 4 - Relay |
| Expandable | Yes |
| Communication | Ethernet |
| Mounting | DIN Rail, Panel Mount |
| Embedded Ethernet | Yes |
| Embedded Clock/Calendar | Yes |
| Approvals | CE, cULus |
| H x W x D | 2.30 " x 2.82 " x 3.55 " |
| Net Weight | 0.45 lbs |
| Gross Weight | 0.555 lbs |
