Series

GA500

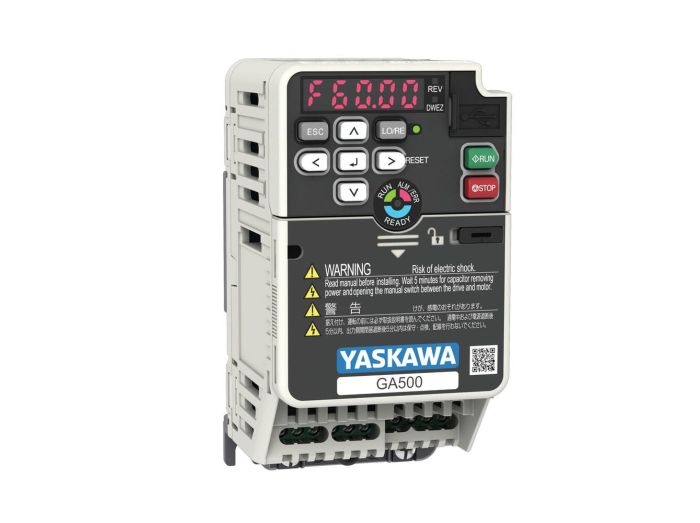

GA50U2006ABA Yaskawa Drives, GA500 Series

MFG #:

GA50U2006ABA

Drive, AC, 1.0HP, 240V, 5.0A, CT, OP 240Vin 3PH 1.5HP 6.0A VT W/DB Trans 5.1in.Hx2.7in.Wx5.0in.D

Product images are for illustration purposes only. Please review specifications and documentation for exact product details.

Series

GA500

GA50U2006ABA Yaskawa Drives, GA500 Series

Name: GA50U2006ABA Yaskawa Drives, GA500 Series
Brand: Yaskawa
SKU: GA50U2006ABA-YASK

MFG #:

GA50U2006ABA

Drive, AC, 1.0HP, 240V, 5.0A, CT, OP 240Vin 3PH 1.5HP 6.0A VT W/DB Trans 5.1in.Hx2.7in.Wx5.0in.D

Qty

Compare

This item cannot be canceled or returned

Specifications

Specifications
Manufacturer Part Number	GA50U2006ABA
Manufacturer	Yaskawa
Product Series	GA500
Family Series	Yaskawa Drives, GA500 Series
Phase	3
HP (Constant Torque Rating)	1 hp
HP (Variable Torque Rating)	1.5 hp
Amps (Constant Torque Rating)	5 A
Amps (Variable Torque Rating)	6 A
Brake	DC Injection, Dynamic Braking
Closed Loop	No
AC Line Regenerative	No
Operator Controls	Keypad Included
Motor Control-Max Level	Open Loop Vector (Sensorless Vector)
Mounting	Panel
Nominal Input Voltage	208 VAC, 240 VAC
AC Voltage	200-240 VAC
Frequency	590 Hz
Frame Size	1.4
Protection Rating	IP20
Dynamic Braking	Included
Height	5.04 "
Width	2.68 "
Depth	5.04 "
Comments	Side-By -Side Mounting, Includes Safe Torque Off, Setup Wizard For Easy Start-up, LED Status Ring
H x W x D	5.04 " x 2.68 " x 5.04 "
Net Weight	2 lbs
Gross Weight	2 lbs
