Series

GA500

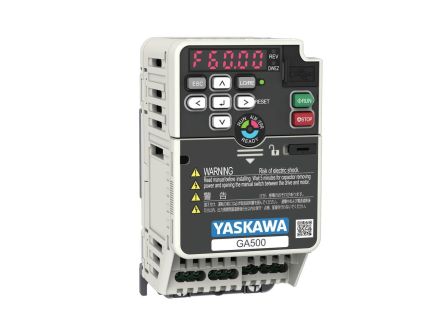

GA50U4001ABA Yaskawa Drives, GA500 Series

MFG #:

GA50U4001ABA

Drive, AC, 0.5HP, 480V, 1.2A, CT, OP 480Vin 3PH 0.5HP 1.2A VT W/DB Trans 5.1in.Hx4.3in.Wx3.2in.D

Product images are for illustration purposes only. Please review specifications and documentation for exact product details.

Series

GA500

GA50U4001ABA Yaskawa Drives, GA500 Series

Name: GA50U4001ABA Yaskawa Drives, GA500 Series
Brand: Yaskawa
SKU: GA50U4001ABA-YASK

MFG #:

GA50U4001ABA

Drive, AC, 0.5HP, 480V, 1.2A, CT, OP 480Vin 3PH 0.5HP 1.2A VT W/DB Trans 5.1in.Hx4.3in.Wx3.2in.D

Qty

Compare

This item cannot be canceled or returned

Specifications

Specifications
Manufacturer Part Number	GA50U4001ABA
Manufacturer	Yaskawa
Product Series	GA500
Family Series	Yaskawa Drives, GA500 Series
Phase	3
HP (Constant Torque Rating)	0.5 hp
HP (Variable Torque Rating)	0.5 hp
Amps (Constant Torque Rating)	1.2 A
Amps (Variable Torque Rating)	1.2 A
Brake	DC Injection, Dynamic Braking
Closed Loop	No
AC Line Regenerative	No
Operator Controls	Keypad Included
Motor Control-Max Level	Open Loop Vector (Sensorless Vector)
Mounting	Panel
Nominal Input Voltage	380 VAC, 415 VAC, 480 VAC
AC Voltage	380-480 VAC
Frequency	590 Hz
Frame Size	2.1
Protection Rating	IP20
Dynamic Braking	Included
Height	5.04 "
Width	4.25 "
Depth	3.19 "
Comments	Side-By -Side Mounting, Includes Safe Torque Off, Setup Wizard For Easy Start-up, LED Status Ring
H x W x D	3.19 " x 4.25 " x 5.04 "
Net Weight	1.8 lbs
Gross Weight	3.115 lbs
