Specifications
| Manufacturer Part Number | GA50U4012ABA |
|---|---|
| Manufacturer | Yaskawa |
| Product Series | GA500 |
| Family Series | Yaskawa Drives, GA500 Series |
| Phase | 3 |
| HP (Constant Torque Rating) | 5 hp |
| HP (Variable Torque Rating) | 7.5 hp |
| Amps (Constant Torque Rating) | 9.2 A |
| Amps (Variable Torque Rating) | 11.9 A |
| Brake | DC Injection, Dynamic Braking |
| Closed Loop | No |
| AC Line Regenerative | No |
| Operator Controls | Keypad Included |
| Motor Control-Max Level | Open Loop Vector (Sensorless Vector) |
| Mounting | Panel |
| Nominal Input Voltage | 380 VAC, 415 VAC, 480 VAC |
| AC Voltage | 380-480 VAC |
| Frequency | 590 Hz |
| Frame Size | 3.1 |
| Protection Rating | IP20 |
| Dynamic Braking | Included |
| Height | 5.04 " |
| Width | 5.51 " |
| Depth | 5.63 " |
| Comments | Side-By -Side Mounting, Includes Safe Torque Off, Setup Wizard For Easy Start-up, LED Status Ring |
| H x W x D | 5.04 " x 5.51 " x 5.63 " |
| Net Weight | 6.285 lbs |
| Gross Weight | 6.285 lbs |
Description

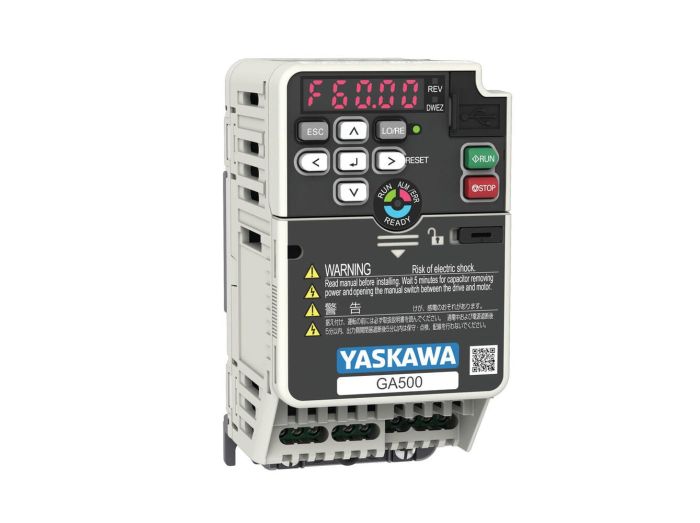

Drives, GA500 Series
Item #
GA50U4012ABA
Drive, AC, 5.0HP, 480V, 9.2A, CT, OP
GA500 Series Information
The GA500 Industrial AC Microdrive is engineered to help you easily handle nearly any application. Sustainability, flexibility, and ease of use are all designed into the drive, helping you make complicated tasks simple. Offering intuitive interaction and world‑class quality, the GA500 is the drive you can count on for constant, high quality performance.
Documents & Resources Links
Accessories
Compare compatible accessories for this product.
| Image | Part | Description | Mounting | Series | Price | Action |
|---|---|---|---|---|---|---|
|
DVTP0009E | dV E-Series, 208-600V, 9A, 2-4kHz, Open Panel | Surface | dv E |
Price unavailable
|
|
|
RLW-07P603 | Reactor, 7.6A, 3.000mH, 3Ph, Open | Surface | RLW |
Price unavailable
|
|
|
RLW-07P605 | Reactor, 7.6A, 4.800mH, 3Ph, Open | Surface | RLW |
Price unavailable
|
