Yaskawa
Series
GA500
GA50U4018ABA Yaskawa Drives, GA500 Series
MFG #:
GA50U4018ABA
Drive, AC, 10HP, 480V, 14.8A, CT, OP 480Vin 3PH 10HP 17.5A VT W/DB Trans 10.2in.Hx5.5in.Wx5.5in.D
View Full Specs

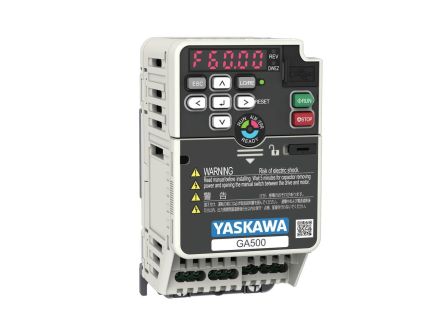

main product photo

Product images are for illustration purposes only. Please review specifications and documentation for exact product details.

Yaskawa
Series
GA500

GA50U4018ABA Yaskawa Drives, GA500 Series

MFG #:
GA50U4018ABA
Drive, AC, 10HP, 480V, 14.8A, CT, OP 480Vin 3PH 10HP 17.5A VT W/DB Trans 10.2in.Hx5.5in.Wx5.5in.D
View Full Specs

Request Lead Time
This item cannot be canceled or returned

Specifications

Specifications
Manufacturer Part Number GA50U4018ABA
Manufacturer Yaskawa
Product Series GA500
Family Series Yaskawa Drives, GA500 Series
Phase 3
HP (Constant Torque Rating) 10 hp
HP (Variable Torque Rating) 10 hp
Amps (Constant Torque Rating) 14.8 A
Amps (Variable Torque Rating) 17.5 A
Brake DC Injection, Dynamic Braking
Closed Loop No
AC Line Regenerative No
Operator Controls Keypad Included
Motor Control-Max Level Open Loop Vector (Sensorless Vector)
Mounting Panel
Nominal Input Voltage 380 VAC, 415 VAC, 480 VAC
AC Voltage 380-480 VAC
Frequency 590 Hz
Frame Size 5
Protection Rating IP20
Dynamic Braking Included
Height 10.24 "
Width 5.51 "
Depth 5.51 "
Comments Side-By -Side Mounting, Includes Safe Torque Off, Setup Wizard For Easy Start-up, LED Status Ring
H x W x D 5.51 " x 5.51 " x 10.24 "
Net Weight 6.6 lbs
Gross Weight 8.825 lbs
