Series

GA800

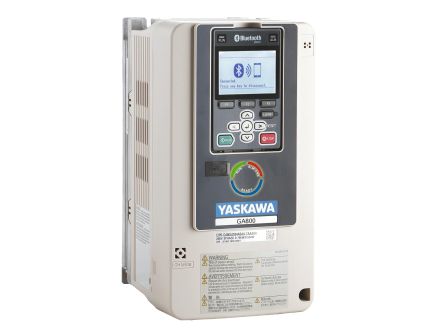

GA80U4002ABM Yaskawa Drives, GA800 Series

MFG #:

GA80U4002ABM

Drive, AC, 0.75HP, 480V, 1.8A, CT,OP 480Vin 3PH 1.0HP 2.1A VT W/DB Trans 10.2in.Hx5.5in.Wx6.9in.D

View Full Specs

Skip to the end of the images gallery

Product images are for illustration purposes only. Please review specifications and documentation for exact product details.

Skip to the beginning of the images gallery

Series

GA800

GA80U4002ABM Yaskawa Drives, GA800 Series

Name: GA80U4002ABM Yaskawa Drives, GA800 Series
Brand: Yaskawa
SKU: GA80U4002ABM-YASK

MFG #:

GA80U4002ABM

Drive, AC, 0.75HP, 480V, 1.8A, CT,OP 480Vin 3PH 1.0HP 2.1A VT W/DB Trans 10.2in.Hx5.5in.Wx6.9in.D

View Full Specs

Request Lead Time

Qty

Compare

This item cannot be canceled or returned

Specifications

Specifications
Manufacturer Part Number	GA80U4002ABM
Manufacturer	Yaskawa
Product Series	GA800
Family Series	Yaskawa Drives, GA800 Series
Phase	3
HP (Constant Torque Rating)	0.75 hp
HP (Variable Torque Rating)	1 hp
Amps (Constant Torque Rating)	1.8 A
Amps (Variable Torque Rating)	2.1 A
Brake	DC Injection, Dynamic Braking
Closed Loop	Optional
AC Line Regenerative	No
Operator Controls	Keypad Included
Motor Control-Max Level	Closed Loop Vector
Mounting	Panel
Nominal Input Voltage	380 VAC, 415 VAC, 480 VAC
AC Voltage	380-480 VAC
Frequency	590 Hz
Frame Size	1
Protection Rating	IP20
Dynamic Braking	Included
Height	10.24 "
Width	5.51 "
Depth	6.93 "
Comments	Side-By -Side Mounting, Includes Safe Torque Off, Setup Wizard For Easy Start-up, Bluetooth Keypad
H x W x D	6.93 " x 5.51 " x 10.24 "
Net Weight	7.7 lbs
Gross Weight	9.83 lbs

Description

Drives, GA800 Series

Item #

GA80U4002ABM

Drive, AC, 0.75HP, 480V, 1.8A, CT,OP

GA800 Series Information

The GA800 drive provides the ultimate combination of power, ease of use, flexibility, and performance. Enjoy effortless setup with a high resolution display or Bluetooth connection to your mobile device while using Yaskawa's free DriveWizard Mobile. Control your simple or complex applications connected to networks or discrete / analog signals. Combine all this with modern safety features and a variety of environmental solutions, and you will have to look no further than GA800 for all your variable speed needs.

High resolution multi‑language display with Startup Wizards and Data‑Logging
Bluetooth and DriveWizard Mobile for convenient and easy interaction
DriveWizard Desktop for comprehensive configuration and monitoring
DriveWorks EZ (embedded function blocks) provides extra flexibility, otherwise accomplished in a separate controller.
Closed or open loop vector control for outstanding regulation and torque production
Fast acting motor control functions provide near tripless operation
Popular network connections provide robust control and monitoring with system controllers
Embedded Auxiliary Control Power Input (24 V) maximizes production time and efficiency by maintaining network communication while main power is removed.
Embedded Safe Torque Off minimizes downtime for applications requiring occasional intervention (SIL CL3, PLe, Category 3).
Integrated DC Reactor (30 HP and larger) improves power quality and compatibility
Integrated 12 Pulse version provides a cost effective solution for low harmonics.
Integrated Brake Transistor (up to 125 HP ND) for cost effective heavy braking
Standard conformal coating and Type 12 versions help resist contamination
Made with RoHS compliant materials for environmental compliance
