GA80U4023ABM
Yaskawa Drives, GA800 Series
Product images are for illustration purposes only. Please review specifications and documentation for exact product details.

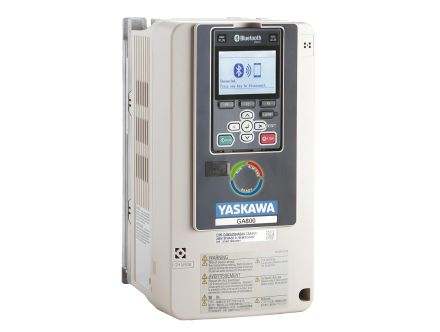

GA80U4023ABM Yaskawa Drives, GA800 Series
Drive, AC, 10HP, 480V, 18.0A, CT, OP
MFG Item Number
GA80U4023ABM
Series
More specs
This item cannot be canceled or returned
Orders placed by 5:00pm Eastern time will ship today. If you would like to pick up your order, select Will Call during checkout if it is available.
Accessories
Description
Drives, GA800 Series
Item #
GA80U4023ABM
Drive, AC, 10HP, 480V, 18.0A, CT, OP
GA800 Series Information
The GA800 drive provides the ultimate combination of power, ease of use, flexibility, and performance. Enjoy effortless setup with a high resolution display or Bluetooth connection to your mobile device while using Yaskawa's free DriveWizard Mobile. Control your simple or complex applications connected to networks or discrete / analog signals. Combine all this with modern safety features and a variety of environmental solutions, and you will have to look no further than GA800 for all your variable speed needs.
- High resolution multi‑language display with Startup Wizards and Data‑Logging
- Bluetooth and DriveWizard Mobile for convenient and easy interaction
- DriveWizard Desktop for comprehensive configuration and monitoring
- DriveWorks EZ (embedded function blocks) provides extra flexibility, otherwise accomplished in a separate controller.
- Closed or open loop vector control for outstanding regulation and torque production
- Fast acting motor control functions provide near tripless operation
- Popular network connections provide robust control and monitoring with system controllers
- Embedded Auxiliary Control Power Input (24 V) maximizes production time and efficiency by maintaining network communication while main power is removed.
- Embedded Safe Torque Off minimizes downtime for applications requiring occasional intervention (SIL CL3, PLe, Category 3).
- Integrated DC Reactor (30 HP and larger) improves power quality and compatibility
- Integrated 12 Pulse version provides a cost effective solution for low harmonics.
- Integrated Brake Transistor (up to 125 HP ND) for cost effective heavy braking
- Standard conformal coating and Type 12 versions help resist contamination
- Made with RoHS compliant materials for environmental compliance
Specifications
| Manufacturer Part Number | GA80U4023ABM |
|---|---|
| Manufacturer | Yaskawa |
| Product Series | GA800 |
| Family Series | Yaskawa Drives, GA800 Series |
| Description | Drive, AC, 10HP, 480V, 18.0A, CT, OP 480Vin 3PH 15HP 23.4A VT W/DB Trans 10.2in.Hx5.5in.Wx8.3in.D |
| Phase | 3 |
| HP (Constant Torque Rating) | 10 hp |
| HP (Variable Torque Rating) | 15 hp |
| Amps (Constant Torque Rating) | 18 A |
| Amps (Variable Torque Rating) | 23.4 A |
| Brake | DC Injection, Dynamic Braking |
| Closed Loop | Optional |
| AC Line Regenerative | No |
| Operator Controls | Keypad Included |
| Motor Control-Max Level | Closed Loop Vector |
| Mounting | Panel |
| Nominal Input Voltage | 380 VAC, 415 VAC, 480 VAC |
| AC Voltage | 380-480 VAC |
| Frequency | 590 Hz |
| Frame Size | 1.5 |
| Protection Rating | IP20 |
| Dynamic Braking | Included |
| Height | 10.24 " |
| Width | 5.51 " |
| Depth | 8.31 " |
| Comments | Side-By -Side Mounting, Includes Safe Torque Off, Setup Wizard For Easy Start-up, Bluetooth Keypad |
| H x W x D | 8.40 " x 5.60 " x 10.35 " |
| Net Weight | 8.285 lbs |
| Gross Weight | 11.14 lbs |
