GR024D3
Macromatic Relays, GR Series
Product images are for illustration purposes only. Please review specifications and documentation for exact product details.

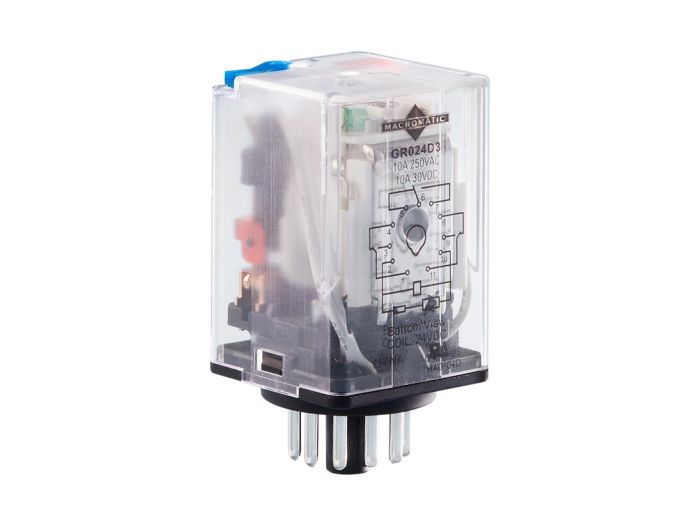

GR024D3 Macromatic Relays, GR Series
Round, 24VDC, 3PDT, 10 Amps
MFG Item Number
GR024D3
Series
More specs
This item cannot be canceled or returned
Orders placed by 5:00pm Eastern time will ship today. If you would like to pick up your order, select Will Call during checkout if it is available.
Description
Relays, GR Series
Item #
GR024D3
Round, 24VDC, 3PDT, 10 Amps
GR Series Information
- Explosionproof, dust‑ignitionproof
- Ten hub arrangements with integral mounting flange and covers
- Malleable iron bodies have high tensile strength, ductility and provides great resistance to corrosion, impact, and shock
- Accurately tapped, tapered hub threads for tight, rigid joints and ground continuity
- Internally threaded body with externally threaded cover
- Covers have pry notches for bar or wrench
- Accommodate sealing, dome, hub and union hub covers, and canopies
- Standard o‑rings provide raintight fit; NEMA 3, 4
- Internal ground screw standard
- Smooth, rounded integral bushing in each hub type box protects conductor insulation
- Used with threaded metal conduit for general purpose wiring
- Function as sealing fittings when used with sealing covers
Specifications
| Manufacturer Part Number | GR024D3 |
|---|---|
| Manufacturer | Macromatic |
| Product Series | GR |
| Family Series | Macromatic Relays, GR Series |
| Description | Round, 24VDC, 3PDT, 10 Amps |
| Coil Voltage | 24 VDC |
| Contacts | 3PDT |
| Mounting | Plug In |
| Termination | Round Pin |
| Enclosure | Plastic |
| Number of Connections | 11 |
| Status Indicator | Yes |
| Push-to-Test | No |
| Diode | No |
| Nominal Coil Voltage | 24 VDC |
| Current Rating | 10 A |
| Safety Guided | No |
| Approvals | CE, cURus |
| H x W x D | 1.40 " x 1.40 " x 2.60 " |
| Net Weight | 0.1981 lbs |
| Gross Weight | 0.1981 lbs |
