H10P2DC
MFG #:
H10P2DC
Specifications
| Manufacturer Part Number | H10P2DC |
|---|---|
| Manufacturer | US Motors |
| Family Series | US Motors Motors |
| Type | General Purpose, Hostile Duty |
| Horsepower | 10 hp |
| Kilowatts | 7.5 kW |
| Speed | 1,760 RPM |
| RPM | 1,760 RPM |
| Number of Poles | 4 |
| Phase | 3 |
| Frequency | 60 Hz |
| NEMA Frame | 215TC |
| AC Voltage | 208-230 VAC, 460 VAC |
| Nominal Voltage | 208 VAC, 240 VAC, 480 VAC |
| Enclosure | Totally Enclosed Fan Cooled |
| Mounting | Foot Mount |
| Current Rating | 26.5-23.9 A, 12 A |
| Composition | Cast Iron |
| Net Weight | 0 lbs |
| Gross Weight | 175 lbs |
Description
Motors, Series
Item #
H10P2DC

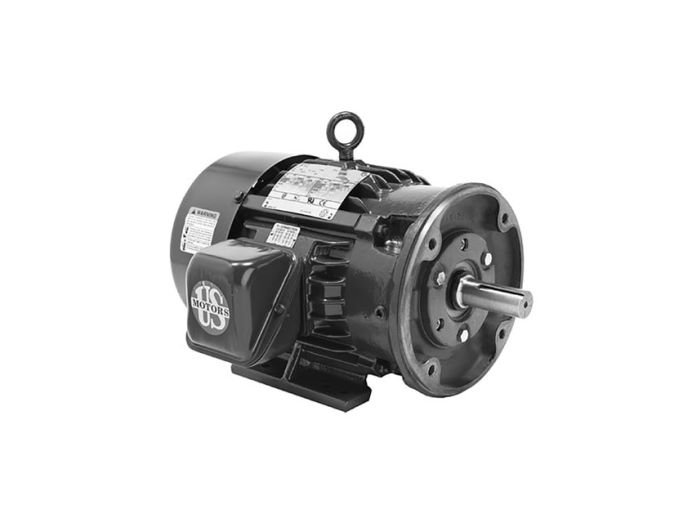

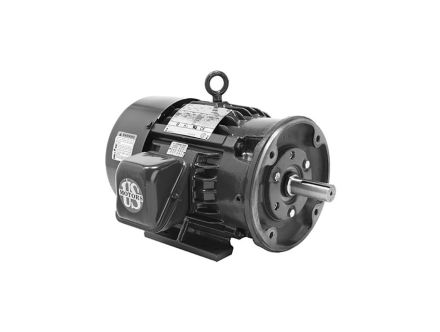

Motor, 10 HP, 1800 RPM, 215TC
Series Information
Documents & Resources Links
Added to Cart
H10P2DC US Motors Motors, Motor, 10 HP, 1800 RPM, 215TC
MFG #:
H10P2DC
Motor, 10 HP, 1800 RPM, 215TC
