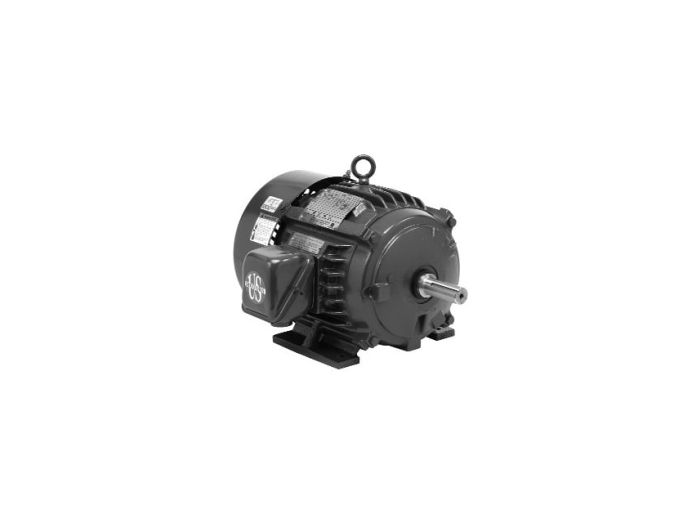

H125P1FS
MFG #:
H125P1FS
Specifications
| Manufacturer Part Number | H125P1FS |
|---|---|
| Manufacturer | US Motors |
| Family Series | US Motors Motors |
| Type | General Purpose, Hostile Duty |
| Horsepower | 125 hp |
| Kilowatts | 93.2 kW |
| Speed | 3,575 RPM |
| RPM | 3,575 RPM |
| Number of Poles | 2 |
| Phase | 3 |
| Frequency | 60 Hz |
| NEMA Frame | 444TS |
| AC Voltage | 460 VAC |
| Nominal Voltage | 480 VAC |
| Enclosure | Totally Enclosed Fan Cooled |
| Mounting | Foot Mount |
| Current Rating | 142 A |
| Composition | Cast Iron |
| Net Weight | 0 lbs |
| Gross Weight | 1660 lbs |
Description
Motors, Series
Item #
H125P1FS
Motor, 125 HP, 3600 RPM, 444TS
Series Information
Documents & Resources Links
Added to Cart
H125P1FS US Motors Motors, Motor, 125 HP, 3600 RPM, 444TS
MFG #:
H125P1FS
Motor, 125 HP, 3600 RPM, 444TS
