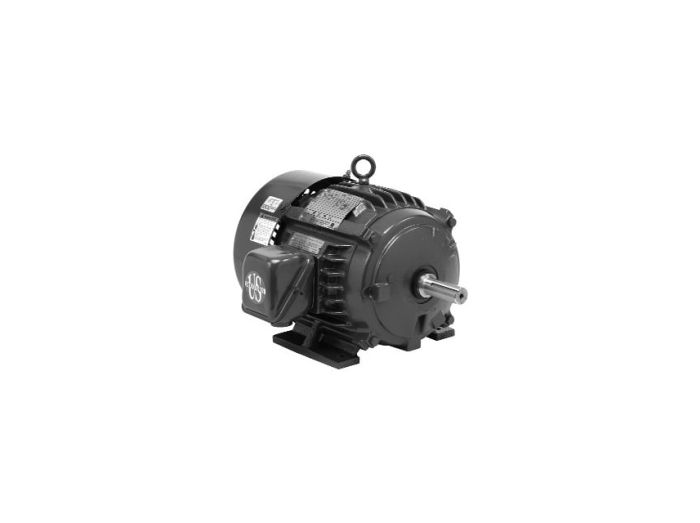

H15P2G
MFG #:
H15P2G
Specifications
| Manufacturer Part Number | H15P2G |
|---|---|
| Manufacturer | US Motors |
| Family Series | US Motors Motors |
| Type | General Purpose, Hostile Duty |
| Horsepower | 15 hp |
| Kilowatts | 11.2 kW |
| Speed | 1,775 RPM |
| RPM | 1,775 RPM |
| Number of Poles | 4 |
| Phase | 3 |
| Frequency | 60 Hz |
| NEMA Frame | 254T |
| AC Voltage | 575 VAC |
| Nominal Voltage | 575 VAC |
| Enclosure | Totally Enclosed Fan Cooled |
| Mounting | Foot Mount |
| Current Rating | 14.6 A |
| Composition | Cast Iron |
| Net Weight | 0 lbs |
| Gross Weight | 300 lbs |
Description
Motors, Series
Item #
H15P2G
Motor, 15 HP, 1800 RPM, 254T
Series Information
Documents & Resources Links
Alternatives
Compare available alternatives using the specifications that matter for this product.
| Image | Part | Description | Voltage | Mounting | Series | Price | Action |
|---|---|---|---|---|---|---|---|
|
ECP2333T-5 | 15HP, 1765RPM, 3PH, 60HZ, 254T, 0936M, TEFC, F1 | 575 VAC, 600 VAC | Foot Mount, Rigid | CP |
Price unavailable
|
Added to Cart
H15P2G US Motors Motors, Motor, 15 HP, 1800 RPM, 254T
MFG #:
H15P2G
Motor, 15 HP, 1800 RPM, 254T
Alternatives
ECP2333T-5 Baldor-ABB Motors Motors, CP Series
Series CP
Series CP
MFG #:
ECP2333T-5
15HP, 1765RPM, 3PH, 60HZ, 254T, 0936M, TEFC, F1
View More Details
