H15T2BC
US Motors Motors
Product images are for illustration purposes only. Please review specifications and documentation for exact product details.

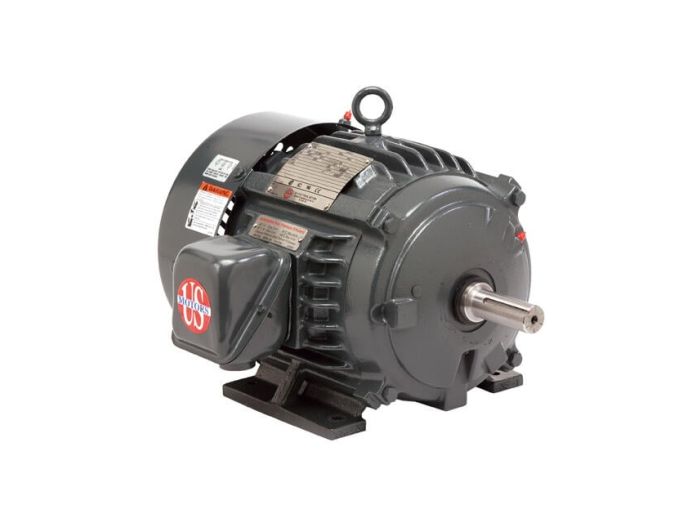

H15T2BC US Motors Motors
Motor, 15 HP, 1800 RPM, 254TC
MFG Item Number
H15T2BC
More specs
This item cannot be canceled or returned
Orders placed by 5:00pm Eastern time will ship today. If you would like to pick up your order, select Will Call during checkout if it is available.
Description
Motors, Series
Item #
H15T2BC
Motor, 15 HP, 1800 RPM, 254TC
Series Information
Specifications
| Country of Origin | Mexico |
|---|---|
| Manufacturer Part Number | H15T2BC |
| Manufacturer | US Motors |
| Family Series | US Motors Motors |
| Description | Motor, 15 HP, 1800 RPM, 254TC |
| Type | Definite Purpose, Hostile Duty |
| Horsepower | 15 hp |
| Kilowatts | 11.2 kW |
| Speed | 1,780 RPM |
| RPM | 1,780 RPM |
| Number of Poles | 4 |
| Phase | 3 |
| Frequency | 60 Hz |
| NEMA Frame | 254TC |
| AC Voltage | 230 VAC, 460 VAC |
| Nominal Voltage | 240 VAC, 480 VAC |
| Enclosure | Totally Enclosed Fan Cooled |
| Mounting | Foot Mount |
| Current Rating | 38 A |
| Inverter Duty | Yes |
| Composition | Cast Iron |
| Net Weight | 300 lbs |
| Gross Weight | 300 lbs |
