HD3P1E
US Motors Motors

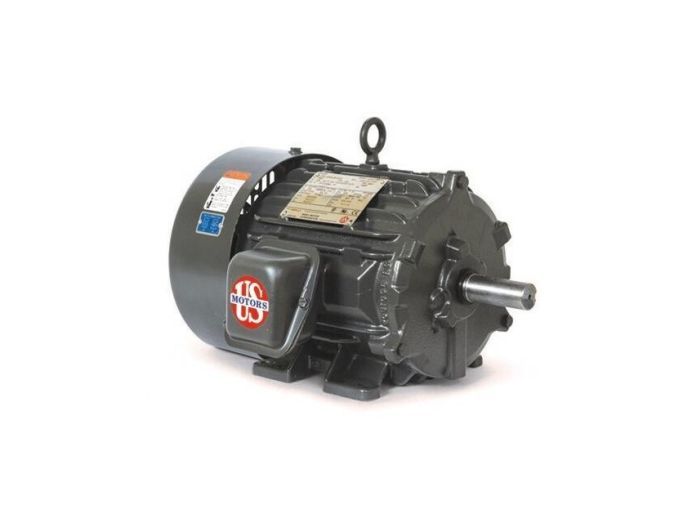

Product images are for illustration purposes only. Please review specifications and documentation for exact product details.
HD3P1E US Motors Motors
Motor, 3 HP, 3600 RPM, 182T
MFG Item Number
HD3P1E
More specs
This item cannot be canceled or returned
Orders placed by 5:00pm Eastern time will ship today. If you would like to pick up your order, select Will Call during checkout if it is available.
Description
Motors, Series
Item #
HD3P1E
Motor, 3 HP, 3600 RPM, 182T
Series Information
Specifications
| Country of Origin | Mexico |
|---|---|
| Manufacturer Part Number | HD3P1E |
| Manufacturer | US Motors |
| Family Series | US Motors Motors |
| Description | Motor, 3 HP, 3600 RPM, 182T |
| Type | General Purpose, Hostile Duty |
| Horsepower | 3 hp |
| Kilowatts | 2.2 kW |
| Speed | 3,540 RPM |
| RPM | 3,540 RPM |
| Number of Poles | 2 |
| Phase | 3 |
| Frequency | 60 Hz |
| NEMA Frame | 182T |
| AC Voltage | 230 VAC, 460 VAC |
| Nominal Voltage | 240 VAC, 480 VAC |
| Enclosure | Totally Enclosed Fan Cooled |
| Mounting | Foot Mount |
| Current Rating | 8.2 A |
| Composition | Cast Iron |
| Net Weight | 70 lbs |
| Gross Weight | 70 lbs |
